AMCL

基本原理

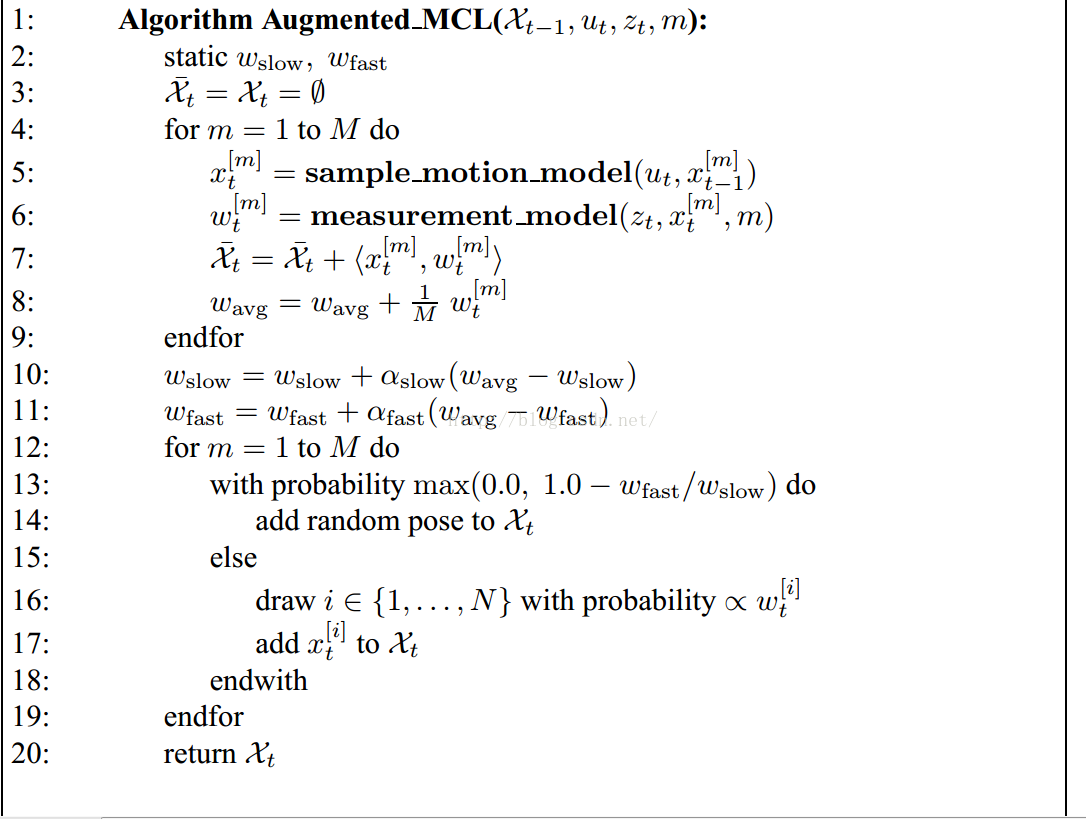

伪代码：
其中：

w

f

a

s

t

w_{fast}

wfast​为长期似然平均估计 ,

a

f

a

s

t

a_{fast}

afast​ 为长期的指数滤波器衰减率

w

s

l

o

w

w_{slow}

wslow​短期似然平均估计,

a

s

l

o

w

a_{slow}

aslow​ 短期的指数滤波器衰减率，通过这四个参数实现自适应性。
自适应性体现在：1.解决了机器人绑架问题，他会在发现粒子们的平均分数突然降低了的时候，在全局再重新的撒一些粒子。2.解决了粒子固定的问题，因为有时候当机器人定位差不多得到的时候，比如这些粒子集中在一起，还要维持这么多的粒子没有必要，这个时候，粒子可以少一点了。

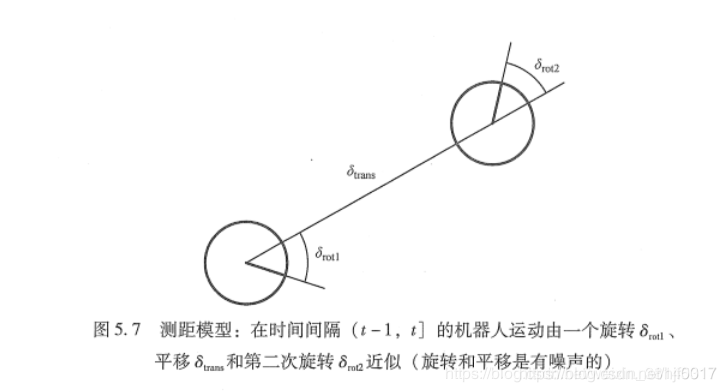

运动模型

// Apply the action model ODOM_MODEL_DIFF MODEL
bool AMCLOdom::UpdateAction(pf_t *pf, AMCLSensorData *data) //ODOM_MODEL_DIFF MODEL
{
  AMCLOdomData *ndata;
  ndata = (AMCLOdomData*) data;

  // Compute the new sample poses
  pf_sample_set_t *set;

  set = pf->sets + pf->current_set;
  pf_vector_t old_pose = pf_vector_sub(ndata->pose, ndata->delta);

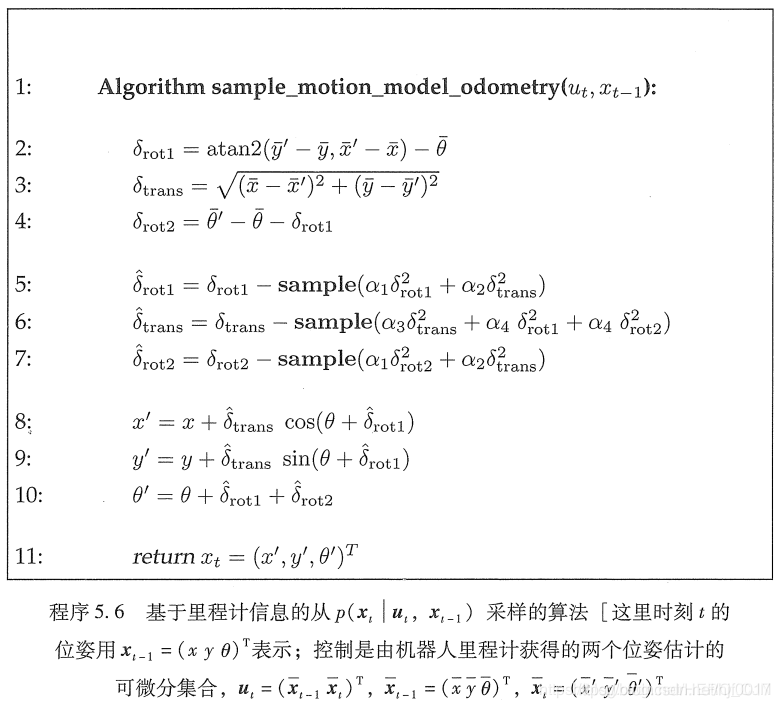

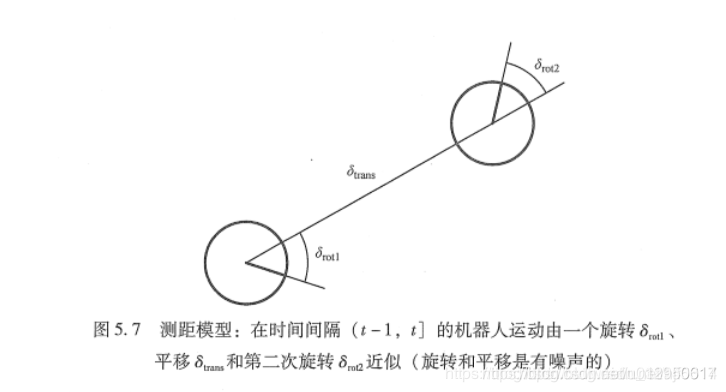

  // Implement sample_motion_odometry (Prob Rob p 136)
  double delta_rot1, delta_trans, delta_rot2;
  double delta_rot1_hat, delta_trans_hat, delta_rot2_hat;
  double delta_rot1_noise, delta_rot2_noise;

  // Avoid computing a bearing from two poses that are extremely near each
  // other (happens on in-place rotation).
  if(sqrt(ndata->delta.v[1]*ndata->delta.v[1] +
          ndata->delta.v[0]*ndata->delta.v[0]) < 0.01)
    delta_rot1 = 0.0;
  else
    delta_rot1 = angle_diff(atan2(ndata->delta.v[1], ndata->delta.v[0]),
                            old_pose.v[2]);
  delta_trans = sqrt(ndata->delta.v[0]*ndata->delta.v[0] +
                     ndata->delta.v[1]*ndata->delta.v[1]);
  delta_rot2 = angle_diff(ndata->delta.v[2], delta_rot1);

  // We want to treat backward and forward motion symmetrically for the
  // noise model to be applied below.  The standard model seems to assume
  // forward motion.
  delta_rot1_noise = std::min(fabs(angle_diff(delta_rot1,0.0)),
                              fabs(angle_diff(delta_rot1,M_PI)));
  delta_rot2_noise = std::min(fabs(angle_diff(delta_rot2,0.0)),
                              fabs(angle_diff(delta_rot2,M_PI)));

  for (int i = 0; i < set->sample_count; i++)
  {
    pf_sample_t* sample = set->samples + i;

    // Sample pose differences
    delta_rot1_hat = angle_diff(delta_rot1,
                                pf_ran_gaussian(this->alpha1*delta_rot1_noise*delta_rot1_noise +
                                                this->alpha2*delta_trans*delta_trans));
    delta_trans_hat = delta_trans -
            pf_ran_gaussian(this->alpha3*delta_trans*delta_trans +
                            this->alpha4*delta_rot1_noise*delta_rot1_noise +
                            this->alpha4*delta_rot2_noise*delta_rot2_noise);
    delta_rot2_hat = angle_diff(delta_rot2,
                                pf_ran_gaussian(this->alpha1*delta_rot2_noise*delta_rot2_noise +
                                                this->alpha2*delta_trans*delta_trans));

    // Apply sampled update to particle pose
    sample->pose.v[0] += delta_trans_hat *
            cos(sample->pose.v[2] + delta_rot1_hat);
    sample->pose.v[1] += delta_trans_hat *
            sin(sample->pose.v[2] + delta_rot1_hat);
    sample->pose.v[2] += delta_rot1_hat + delta_rot2_hat;
  }

  return true;
}

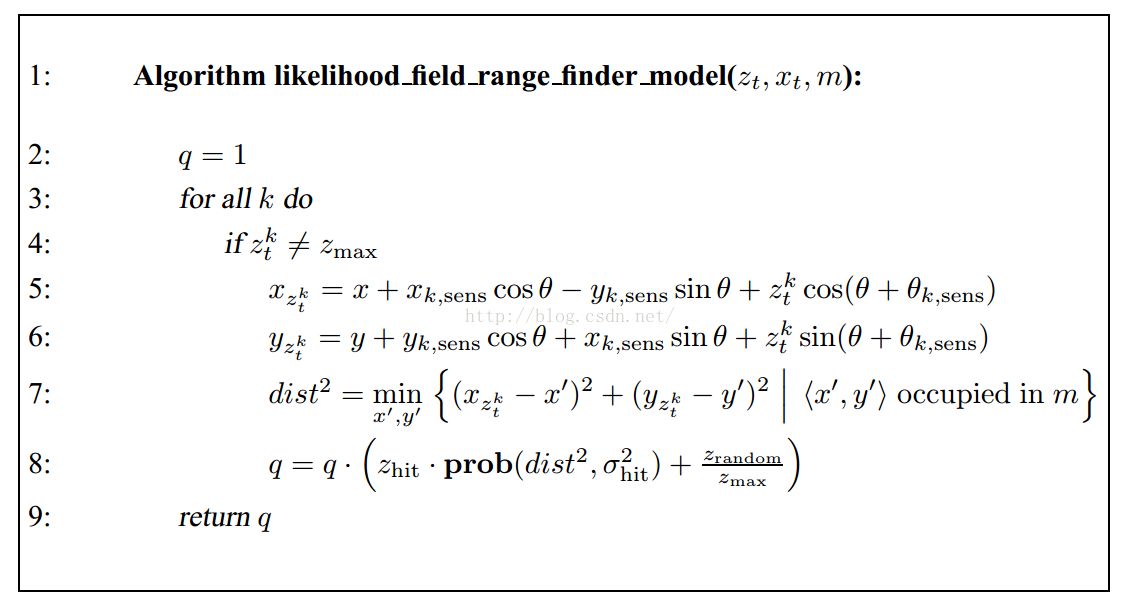

观测模型

在amcl定位中，是通过实现计算每个地图ceil的最近障碍物和距离，然后直接查表就得到结果啦。

代码：

double AMCLLaser::LikelihoodFieldModel(AMCLLaserData *data, pf_sample_set_t* set)
{
  AMCLLaser *self;
  int i, j, step;
  double z, pz;
  double p;
  double obs_range, obs_bearing;
  double total_weight;
  pf_sample_t *sample;
  pf_vector_t pose;
  pf_vector_t hit;

  self = (AMCLLaser*) data->sensor;

  total_weight = 0.0;

  // Compute the sample weights
  for (j = 0; j < set->sample_count; j++)
  {
    sample = set->samples + j;
    pose = sample->pose;

    // Take account of the laser pose relative to the robot
    pose = pf_vector_coord_add(self->laser_pose, pose);

    p = 1.0;

    // Pre-compute a couple of things
    double z_hit_denom = 2 * self->sigma_hit * self->sigma_hit;
    double z_rand_mult = 1.0/data->range_max;

    step = (data->range_count - 1) / (self->max_beams - 1);

    // Step size must be at least 1
    if(step < 1)
      step = 1;

    for (i = 0; i < data->range_count; i += step)
    {
      obs_range = data->ranges[i][0];
      obs_bearing = data->ranges[i][1];

      // This model ignores max range readings
      if(obs_range >= data->range_max)
        continue;

      // Check for NaN
      if(obs_range != obs_range)
        continue;

      pz = 0.0;

      // Compute the endpoint of the beam
      hit.v[0] = pose.v[0] + obs_range * cos(pose.v[2] + obs_bearing);
      hit.v[1] = pose.v[1] + obs_range * sin(pose.v[2] + obs_bearing);

      // Convert to map grid coords.
      int mi, mj;
      mi = MAP_GXWX(self->map, hit.v[0]);
      mj = MAP_GYWY(self->map, hit.v[1]);

      // Part 1: Get distance from the hit to closest obstacle.
      // Off-map penalized as max distance
      if(!MAP_VALID(self->map, mi, mj))
        z = self->map->max_occ_dist;
      else
        z = self->map->cells[MAP_INDEX(self->map,mi,mj)].occ_dist;
      // Gaussian model
      // NOTE: this should have a normalization of 1/(sqrt(2pi)*sigma)
      pz += self->z_hit * exp(-(z * z) / z_hit_denom);
      // Part 2: random measurements
      pz += self->z_rand * z_rand_mult;

      // TODO: outlier rejection for short readings

      assert(pz <= 1.0);
      assert(pz >= 0.0);
      //      p *= pz;
      // here we have an ad-hoc weighting scheme for combining beam probs
      // works well, though...
      p += pz*pz*pz;
    }

    sample->weight *= p;
    total_weight += sample->weight;
  }

  return(total_weight);
}

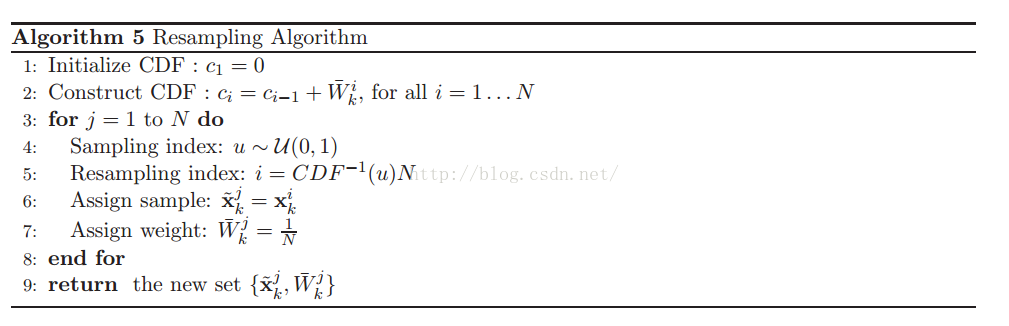

// Resample the distribution
void pf_update_resample(pf_t *pf)
{
  int i;
  double total;
  pf_sample_set_t *set_a, *set_b;
  pf_sample_t *sample_a, *sample_b;

  //double r,c,U;
  //int m;
  //double count_inv;
  double* c;

  double w_diff;

  set_a = pf->sets + pf->current_set;//current，只有0和1，a和b交替指向sets的第一个和第二个位置，
                                     //每个周期由a生成b，但是a所指向的sets的位置不一样，a在本个周期指向的是上个周期中b的位置
  set_b = pf->sets + (pf->current_set + 1) % 2;
  //set_a为上周期采样的粒子，set_b为本周期将要采样的粒子


  // Build up cumulative probability table for resampling.
  // TODO: Replace this with a more efficient procedure
  // (e.g., http://www.network-theory.co.uk/docs/gslref/GeneralDiscreteDistributions.html)
  c = (double*)malloc(sizeof(double)*(set_a->sample_count+1));//分配count+1个 double类型的储存单元
  c[0] = 0.0;
  for(i=0;i<set_a->sample_count;i++)//权重累积
    c[i+1] = c[i]+set_a->samples[i].weight;

  // Create the kd tree for adaptive sampling
  pf_kdtree_clear(set_b->kdtree);//为自适应采样创建kd树

  // Draw samples from set a to create set b.
  total = 0;
  set_b->sample_count = 0;

  w_diff = 1.0 - pf->w_fast / pf->w_slow;// w_fast 长期似然平均估计，w_slow 短期似然平均估计，a_fast 长期的指数滤波器衰减率， a_slow短期的指数滤波器衰减率
  if(w_diff < 0.0)
    w_diff = 0.0;

  while(set_b->sample_count < pf->max_samples)
  {
    sample_b = set_b->samples + set_b->sample_count++;
    //0-1之间均匀分布的随机数，按照概率增加，w_diff越大，增加粒子的可能性也越大
    if(drand48() < w_diff)
      sample_b->pose = (pf->random_pose_fn)(pf->random_pose_data);//增加随机分布粒子，重采样
    else
    {
      // Can't (easily) combine low-variance sampler with KLD adaptive
      // sampling, so we'll take the more traditional route.
      /*
      // Low-variance resampler, taken from Probabilistic Robotics, p110
      U = r + m * count_inv;
      while(U>c)
      {
        i++;
        // Handle wrap-around by resetting counters and picking a new random
        // number
        if(i >= set_a->sample_count)
        {
          r = drand48() * count_inv;
          c = set_a->samples[0].weight;
          i = 0;
          m = 0;
          U = r + m * count_inv;
          continue;
        }
        c += set_a->samples[i].weight;
      }
      m++;
      */

      // Naive discrete event sampler  离散采样器
      double r;
      r = drand48();//生成一个随机数

      for(i=0;i<set_a->sample_count;i++)
      {
        if((c[i] <= r) && (r < c[i+1]))//将随机数以权重为概率分配到某处
          break;
      }
      assert(i<set_a->sample_count);

      sample_a = set_a->samples + i;

      assert(sample_a->weight > 0);

      // Add sample to list
      sample_b->pose = sample_a->pose;
      //在一个即生成随机数位置增加一个粒子，某个位置附近粒子数越多或者权重越大，这个位置生成重采样的粒子概率越大
    }

    sample_b->weight = 1.0;//每个粒子都是1，之后标准化
    total += sample_b->weight;

    // Add sample to histogram
    pf_kdtree_insert(set_b->kdtree, sample_b->pose, sample_b->weight);//将样本添加到直方图，关于位姿的二叉树

    // See if we have enough samples yet
    if (set_b->sample_count > pf_resample_limit(pf, set_b->kdtree->leaf_count))
      break;
  }

  // Reset averages, to avoid spiraling off into complete randomness.
  if(w_diff > 0.0)
    pf->w_slow = pf->w_fast = 0.0;//增加粒子集后重置似然

  //fprintf(stderr, "\n\n");

  // Normalize weights
  for (i = 0; i < set_b->sample_count; i++)
  {
    sample_b = set_b->samples + i;
    sample_b->weight /= total; //重采样以后每个粒子权重=1 / M
  }

  // Re-compute cluster statistics 聚类，得到均值和方差等信息，将相近的一堆粒子融合成一个粒子
  pf_cluster_stats(pf, set_b);

  // Use the newly created sample set  //新粒子集
  pf->current_set = (pf->current_set + 1) % 2; //current 0和1交替

  pf_update_converged(pf);//计算滤波器是否收敛

  free(c);
  return;
}

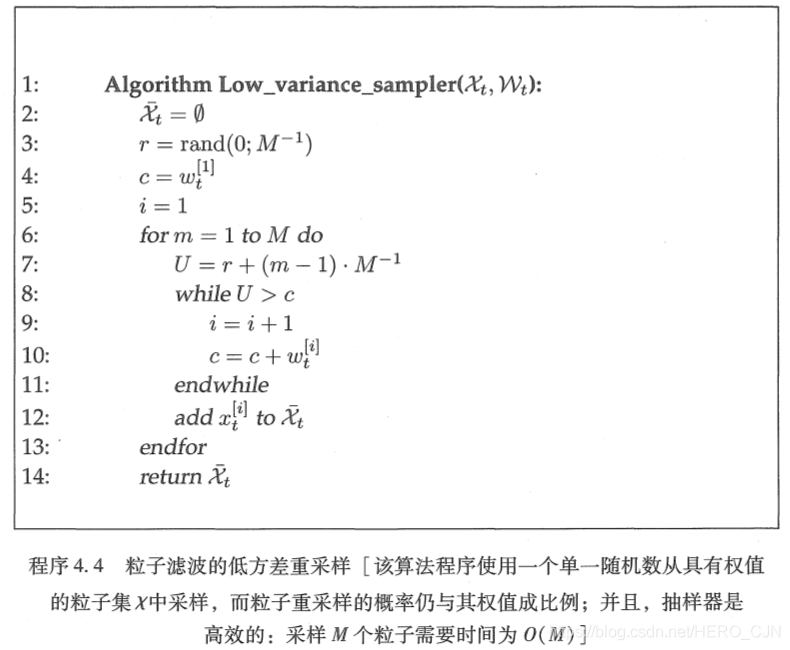

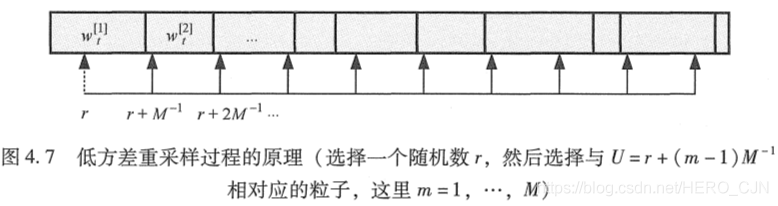

低方差采样

低方差采样的优点有三个方面的。第一, 与独立随机采样相比，它以更有 序的形式覆盖了样本空间。这很明显基于这样的事实：非独立采样按部就班地 循环通过所有粒子，而不是随机独立地进行选择。第二，如果所有的样本都具 有相同的重要性因子，那么结果样本集

χ

ˉ

t

\bar{\chi}_{t}

χˉ​t​ 等效于

χ

t

\chi_{t}

χt​ ，如果在重采样时没有将观 测集成到

χ

t

\chi_{t}

χt​, 则不会有样本丢失。第三，低方差采样复杂度为

O

(

M

)

O(M)

O(M) 。 对独立 采样来说，想得到相同的复杂性是困难的; 一旦已经得到一个随机数，明显需 要对每一个粒子进行

O

(

log

⁡

M

)

O(\log M)

O(logM) 搜索，则整个重采样过程复杂度为

O

(

M

log

⁡

M

)

O(M \log M)

O(MlogM) 。 当采用粒子滤波时，必须计算时间的长短，高效实施的重采样过程往往可以大 大提升实际性能。因此，机器人技术领域中粒子滤波的实现往往依赖刚才讨论的 机制。

GMAPPING

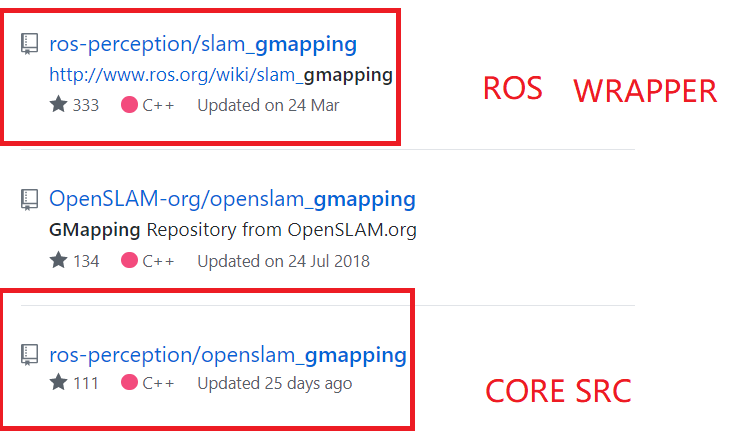

源码：git搜索 gmapping 下面两个即是：

gmapping 原理很简单，通过“l粒子滤波“实现定位。具体通过粒子与已经产生的地图进行scanMatch，矫正里程计误差实现。 在定位的同时，每次经过map_update_interval_时间，进行地图更新 updateMap(*scan)。相对cartographer，缺少闭环，所以计算量很小，实测，局部地图比carto清晰，质量较好。下面对代码进行梳理（梳理导航相关代码跟着laser走，会比较清晰）

代码梳理

1> ros 部分 (代码为简化版，方便梳理 … 表示有省略代码)

int main(int argc, char** argv)
{
  ros::init(argc, argv, "slam_gmapping");
  SlamGMapping gn;
  gn.startLiveSlam();
  ros::spin();
  return(0);
}

gmapping/src/slam_gmapping.cpp

void SlamGMapping::startLiveSlam()
{
  ...  // 订阅激光数据
  scan_filter_->registerCallback(boost::bind(&SlamGMapping::laserCallback, this, _1));
}

void SlamGMapping::laserCallback(const sensor_msgs::LaserScan::ConstPtr& scan)
{
  // We can't initialize the mapper until we've got the first scan
  if(!got_first_scan_)
  {
    if(!initMapper(*scan))
      return;
  }
  GMapping::OrientedPoint odom_pose;
  if(addScan(*scan, odom_pose))// addscan：对新激光，结合里程计数据进行粒子滤波矫正得出最新位置
  { // 以下通过getBestParticle的位置（即，当前激光位置）和里程计最终，算出map-to-odom，发布出去
    GMapping::OrientedPoint mpose = gsp_->getBestParticleIndex().pose;
    tf::Transform laser_to_map = tf::Transform(mpose...）;
    tf::Transform odom_to_laser = tf::Transform(odom_pose...);
    map_to_odom_ = (odom_to_laser * laser_to_map).inverse();
    // 当满足 一定时间间隔 更新地图
    if(!got_map_ || (scan->header.stamp - last_map_update) > map_update_interval_)
    {
      updateMap(*scan);
      last_map_update = scan->header.stamp;
    }
 }

总结：其实以上便是gmapping主要程序框架，通过激光数据和odom数据，进行粒子滤波计算，不断更新自己的位置，同时间断的进行更新地图运算。具体实现函数为：addScan(*scan, odom_pose) 和 updateMap(*scan);两个函数之间通过变量best（gsp_获得）连接（best是通过粒子滤波得到的最优粒子，也就是SLAM轨迹最优位置）。具体相关代码如下：gmapping/src/slam_gmapping.cpp （核心结构代码）

GMapping::GridSlamProcessor* gsp_;
void SlamGMapping::laserCallback(const sensor_msgs::LaserScan::ConstPtr& scan)
{
  if(addScan(*scan, odom_pose))// addscan：对新激光，结合里程计数据进行粒子滤波矫正得出最新位置
  {
	...
    // 当满足 一定时间间隔 更新地图
    if(!got_map_ || (scan->header.stamp - last_map_update) > map_update_interval_)
    {
      updateMap(*scan);
      last_map_update = scan->header.stamp;
    }
  }
}

bool SlamGMapping::addScan(const sensor_msgs::LaserScan& scan, GMapping::OrientedPoint& gmap_pose)
{
  return gsp_->processScan(reading);
}

void SlamGMapping::updateMap(const sensor_msgs::LaserScan& scan)
{
  GMapping::GridSlamProcessor::Particle best = gsp_->getParticles()[gsp_->getBestParticleIndex()];
  //以下 得到机器人最优的携带地图路径,重新计算栅格单元的概率.
  for(GMapping::GridSlamProcessor::TNode* n = best.node;
      n;
      n = n->parent)
  {
      ... updateMap();
  }
}

int GridSlamProcessor::getBestParticleIndex() const{
    unsigned int bi=0;
    double bw=-std::numeric_limits<double>::max();
    for (unsigned int i=0; i<m_particles.size(); i++)
       if (bw<m_particles[i].weightSum){
          bw=m_particles[i].weightSum;
          bi=i;
       }
    return (int) bi;
}

updateMap

gmapping/src/slam_gmapping.cpp

通过粒子滤波得到的best_particle （一条最优路径。）建图。

void SlamGMapping::updateMap(const sensor_msgs::LaserScan& scan)
{
  GMapping::ScanMatcher matcher;  // 定义matcher 并设置参数，为地图更新做准备
  matcher.setLaserParameters(scan.ranges.size(), &(laser_angles_[0]),
                             gsp_laser_->getPose());
  matcher.setlaserMaxRange(maxRange_);
  matcher.setusableRange(maxUrange_);
  matcher.setgenerateMap(true);
  if(!got_map_) { // 如果没有地图，便初始化一个地图
    map_.map.info.resolution = delta_;
    map_.map.info.origin.position.x = 0.0;
    map_.map.info.origin.position.y = 0.0;
    map_.map.info.origin.position.z = 0.0;
    map_.map.info.origin.orientation.x = 0.0;
    map_.map.info.origin.orientation.y = 0.0;
    map_.map.info.origin.orientation.z = 0.0;
    map_.map.info.origin.orientation.w = 1.0;
  }
  GMapping::Point center;
  center.x=(xmin_ + xmax_) / 2.0;  // xmin，max ，ymin  max 地图边界坐标 center 中心坐标
  center.y=(ymin_ + ymax_) / 2.0;
  GMapping::ScanMatcherMap smap(center, xmin_, ymin_, xmax_, ymax_,
                                delta_);// detla  分辨率
  GMapping::GridSlamProcessor::Particle best = gsp_->getParticles()[gsp_->getBestParticleIndex()];
  //以下 得到机器人最优的携带地图路径,重新计算栅格单元的概率.
  for(GMapping::GridSlamProcessor::TNode* n = best.node;
      n;
      n = n->parent)
  {
    if(!n->reading)
    {
      ROS_DEBUG("Reading is NULL");
      continue;
    }
    //以下是updateMap主要函数
    matcher.invalidateActiveArea(); //有效区域还没计算，等待计算。
    matcher.computeActiveArea(smap, n->pose, &((*n->reading)[0])); //计算有效区域
    matcher.registerScan(smap, n->pose, &((*n->reading)[0]));//匹配扫描，根据Bresenham算法确     定激光扫过的单元格，进行改良跟新
  }
  // the map may have expanded, so resize ros message as well
  if(map_.map.info.width != (unsigned int) smap.getMapSizeX() || map_.map.info.height != (unsigned int) smap.getMapSizeY()) {
    // NOTE: The results of ScanMatcherMap::getSize() are different from the parameters given to the constructor
    // so we must obtain the bounding box in a different way
    GMapping::Point wmin = smap.map2world(GMapping::IntPoint(0, 0));
    GMapping::Point wmax = smap.map2world(GMapping::IntPoint(smap.getMapSizeX(), smap.getMapSizeY()));
    xmin_ = wmin.x; ymin_ = wmin.y;
    xmax_ = wmax.x; ymax_ = wmax.y;

    map_.map.info.width = smap.getMapSizeX();
    map_.map.info.height = smap.getMapSizeY();
    map_.map.info.origin.position.x = xmin_;
    map_.map.info.origin.position.y = ymin_;
    map_.map.data.resize(map_.map.info.width * map_.map.info.height);
  }
  // 跟新地图栅格值
  for(int x=0; x < smap.getMapSizeX(); x++)
  {
    for(int y=0; y < smap.getMapSizeY(); y++)
    {
      /// @todo Sort out the unknown vs. free vs. obstacle thresholding
      GMapping::IntPoint p(x, y);
      double occ=smap.cell(p);
      if(occ < 0)
        map_.map.data[MAP_IDX(map_.map.info.width, x, y)] = -1;
      else if(occ > occ_thresh_)
      {
        //map_.map.data[MAP_IDX(map_.map.info.width, x, y)] = (int)round(occ*100.0);
        map_.map.data[MAP_IDX(map_.map.info.width, x, y)] = 100;
      }
      else
        map_.map.data[MAP_IDX(map_.map.info.width, x, y)] = 0;
    }
  }
  got_map_ = true;
  //make sure to set the header information on the map
  map_.map.header.stamp = ros::Time::now();
  map_.map.header.frame_id = tf_.resolve( map_frame_ );
  sst_.publish(map_.map);
}

// scanmatcher/scanmatcher.cpp  简化版程序
double ScanMatcher::registerScan(ScanMatcherMap& map, const OrientedPoint& p, const double* readings){
  IntPoint p0=map.world2map(lp); // 得到激光起始点世界坐标
  // 遍历每条激光线
  for (const double* r=readings+m_initialBeamsSkip; r<readings+m_laserBeams; r++, angle++)
    if (*r>m_laserMaxRange||*r>m_usableRange) continue;
    Point phit=lp;
    phit.x+=*r*cos(lp.theta+*angle);
    phit.y+=*r*sin(lp.theta+*angle);
    IntPoint p1=map.world2map(phit);
    map.cell(p1).update(true,phit);
}

addScan

粒子滤波伪代码：参考概率机器人 英文版

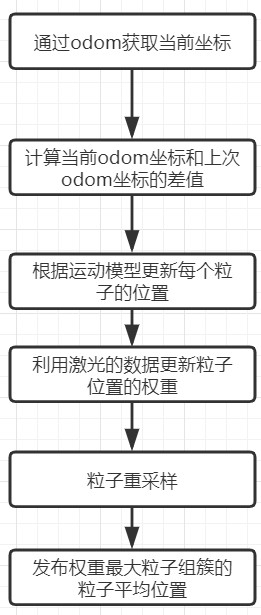

粒子滤波流程：

运动模型：

处理计算过程：

主要过程：

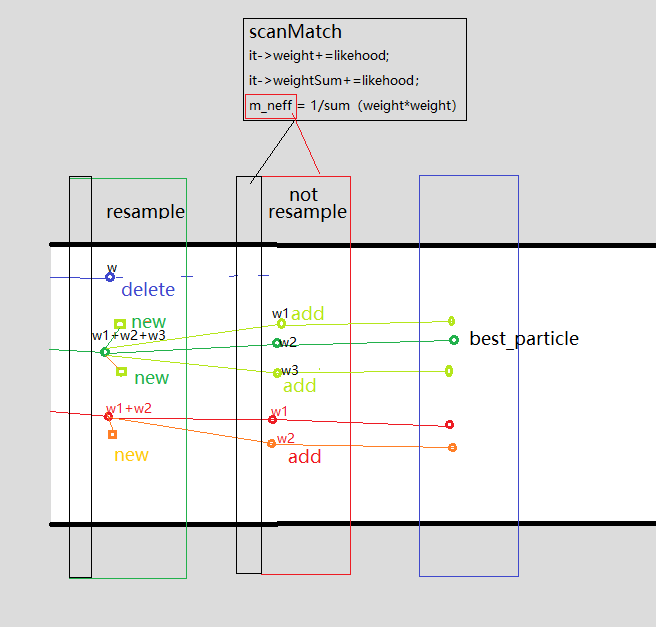

• scanMath 得到每个粒子的权重 it—>weight （当前匹配结果+之前路径权重）和it—> weightSUM,以及Neff作为判断是否需要重采样的依据

• updateTreeWeights： 把当前weight值根据parent关系传递给之前节点。如上图所示：parent weight = sum（child weight）

• 如果需要重采样，则根据一定规则，删除一些权重较低的粒子，并增加一些权重较大粒子。如果不需要重采样，则跟新父子关系，产生新的节点即可。

  顶层代码如下：

gmapping/src/slam_gmapping.cpp

bool SlamGMapping::addScan(const sensor_msgs::LaserScan& scan, GMapping::OrientedPoint& gmap_pose)
{
  // GMapping wants an array of doubles...
  double* ranges_double = new double[scan.ranges.size()];
  GMapping::RangeReading reading(scan.ranges.size(),
                                 ranges_double,
                                 gsp_laser_,
                                 scan.header.stamp.toSec());
  reading.setPose(gmap_pose);
  return gsp_->processScan(reading);
}

gridfastslam/gridslamprocessor_tree.cpp

bool GridSlamProcessor::processScan(const RangeReading & reading, int 0 = 0){
  /**retireve the position from the reading, and compute the odometry*/
  m_lastPartPose=m_odoPose=reading.getPose();
  //write the state of the reading and update all the particles using the motion model
  for (ParticleVector::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
    OrientedPoint& pose(it->pose);
    pose=m_motionModel.drawFromMotion(it->pose, relPose, m_odoPose);
  } // 通过里程计计算新粒子运动后的位置
    ...
  // 算出里程计在这个周期内跑了多远
  OrientedPoint move=relPose-m_odoPose;
  move.theta=atan2(sin(move.theta), cos(move.theta));
  m_linearDistance+=sqrt(move*move);
  m_angularDistance+=fabs(move.theta);
  //下次迭代开始
  m_odoPose=relPose;
  bool processed=false;
  // 如果里程计大于某个阈值，就处理一批激光数据。可参照视觉SLAM关键帧的内在含义
  if ( m_linearDistance>m_linearThresholdDistance
  || m_angularDistance>m_angularThresholdDistance){
    //把激光雷达数据转换成openslam_gmapping可以读懂的格式
    double * plainReading = new double[m_beams];
    for(unsigned int i=0; i<m_beams; i++){
      plainReading[i]=reading[i];
    }
    //为每个粒子进行scanMatch，计算出每个粒子的最优位姿
    scanMatch(plainReading);
    updateTreeWeights(false);//由于scanmatch之中对粒子的权重进行了更新，各个粒子的轨迹上的累计权重                              都需要重新计算
    resample(plainReading, adaptParticles);
    updateTreeWeights(false);

    m_lastPartPose=m_odoPose; //update the past pose for the next iteration
    m_linearDistance=0;
    m_angularDistance=0;
    m_count++;
    processed=true;

    //keep ready for the next step
    for (ParticleVector::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
      it->previousPose=it->pose;
    }
  }
  return processed;
}

scanMatch(plainReading);

struct TNode{
  OrientedPoint pose:      the pose of the robot in the trajectory
  double weight:    the weight of the particle at that point in the trajectory
  double accWeight: the cumulative weight of the particle
  TNode* parent:    the parent node in the tree
  int childs:    the number of childs
};
/**This class defines a particle of the filter. Each particle has a map, a pose, a weight and retains the current node in the trajectory tree*/
struct Particle{
  ScanMatcherMap map;
  OrientedPoint pose;
  /** The pose of the robot at the previous time frame (used for computing thr odometry displacements) */
  OrientedPoint previousPose;
  double weight;
  double weightSum; /** The cumulative weight of the particle */
  double gweight;
  int previousIndex;/** The index of the previous particle in the trajectory tree */
  TNode* node; /** Entry to the trajectory tree */
};


/**Just scan match every single particle.If the scan matching fails, the particle gets a default likelihood.*/
inline void GridSlamProcessor::scanMatch(const double* plainReading){
  // sample a new pose from each scan in the reference
  double sumScore=0;
  for (ParticleVector::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
    m_matcher.likelihoodAndScore(s, l, it->map, it->pose, plainReading); //l is the likelihood
    sumScore+=score;
    it->weight+=l;
    it->weightSum+=l;
    m_matcher.invalidateActiveArea();
    m_matcher.computeActiveArea(it->map, it->pose, plainReading);
  }
}

updateTreeWeights(false);

void  GridSlamProcessor::updateTreeWeights(bool weightsAlreadyNormalized){
  if (!weightsAlreadyNormalized) { normalize();}
  resetTree();  //整个tree，所有参数置0
  propagateWeights();
}

inline void GridSlamProcessor::normalize(){  //  各个particle的weight值标准化，得到m_weights，用于propagateWeights
  //normalize the log m_weights
  double gain=1./(m_obsSigmaGain*m_particles.size());
  double lmax= -std::numeric_limits<double>::max();
  for (ParticleVector::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
    lmax=it->weight>lmax?it->weight:lmax;
  }
  m_weights.clear();
  double wcum=0;
  for (std::vector<Particle>::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
    m_weights.push_back(exp(gain*(it->weight-lmax)));
    wcum+=m_weights.back();
    //cout << "l=" << it->weight<< endl;
  }
  m_neff=0;  // 离散度计算，作为是否重采样的判断参数
  for (std::vector<double>::iterator it=m_weights.begin(); it!=m_weights.end(); it++){
    *it=*it/wcum;
    double w=*it;
    m_neff+=w*w;
  }
  m_neff=1./m_neff;
}

double GridSlamProcessor::propagateWeights(){  //每个粒子通过当前weight值，向其parent传递。
  double lastNodeWeight=0;
  double aw=0;   // sum of the weights in the
  std::vector<double>::iterator w=m_weights.begin();
  for (ParticleVector::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
    double weight=*w;
    aw+=weight;
    TNode * n=it->node;
    n->accWeight=weight;
    lastNodeWeight+=propagateWeight(n->parent,n->accWeight);
    w++;
  }
  if (fabs(aw-1.0) > 0.0001 || fabs(lastNodeWeight-1.0) > 0.0001) {
    cerr << "root->accWeight=" << lastNodeWeight << "    sum_leaf_weights=" << aw << endl;
    assert(0);
  }
  return lastNodeWeight;
}
double propagateWeight(GridSlamProcessor::TNode* n, double weight){
  if (!n) return weight;
  double w=0;
  n->visitCounter++;
  n->accWeight+=weight;  //所有childs 的weight都传递来
  if (n->visitCounter==n->childs){ //迭代向前传递
    w=propagateWeight(n->parent,n->accWeight);
  }
  assert(n->visitCounter<=n->childs);
  return w;
}

resample(plainReading, adaptParticles);

//原理：粒子集对目标分布的近似越差，则权重的方差越大。因此用Neff作为权重值离差的量度/
//很多粒子的权重都变得很小，可以忽略了，只有少数粒子的权重比较大。并且粒子权值的方差随着时间增大，状态空间中的有效粒子数较少。
//随着无效采样粒子数目的增加，使得大量的计算浪费在对估计后验滤波概率分布几乎不起作用的粒子上，使得估计性能下降，
inline bool GridSlamProcessor::resample(const double* plainReading, int adaptSize, const RangeReading* ){
  bool hasResampled = false;
  TNodeVector oldGeneration;
  for (unsigned int i=0; i<m_particles.size(); i++){
    oldGeneration.push_back(m_particles[i].node);
  }

  if (m_neff<m_resampleThreshold*m_particles.size()){  //m_resampleThreshold =.5

    uniform_resampler<double, double> resampler;
    m_indexes=resampler.resampleIndexes(m_weights, adaptSize);

    ParticleVector temp;
    unsigned int j=0;
    std::vector<unsigned int> deletedParticles;  //this is for deleteing the particles which have been resampled away.

    //    cerr << "Existing Nodes:" ;
    for (unsigned int i=0; i<m_indexes.size(); i++){
      while(j<m_indexes[i]){
        deletedParticles.push_back(j);  // delete nodes
        j++;
      }
      if (j==m_indexes[i]) j++;
      // find the children of m_indexes[i] node
      Particle & p=m_particles[m_indexes[i]];
      TNode* node=0;
      TNode* oldNode=oldGeneration[m_indexes[i]];
      node=new  TNode(p.pose, 0, oldNode, 0);
      node->reading=0;

      temp.push_back(p);
      temp.back().node=node;
      temp.back().previousIndex=m_indexes[i];
    }
    while(j<m_indexes.size()){
      deletedParticles.push_back(j);
      j++;
    }
    for (unsigned int i=0; i<deletedParticles.size(); i++){
      delete m_particles[deletedParticles[i]].node;  //delete nodes
      m_particles[deletedParticles[i]].node=0;
    }
    //Copying Particles and  Registering  scans...
    m_particles.clear();
    for (ParticleVector::iterator it=temp.begin(); it!=temp.end(); it++){
      it->setWeight(0);
      m_matcher.invalidateActiveArea();
      m_matcher.registerScan(it->map, it->pose, plainReading);
      m_particles.push_back(*it);//
    }
    hasResampled = true;
  } else {
    int index=0;
    TNodeVector::iterator node_it=oldGeneration.begin();
    for (ParticleVector::iterator it=m_particles.begin(); it!=m_particles.end(); it++){
      //create a new node in the particle tree and add it to the old tree
      TNode* node=0;
      node=new TNode(it->pose, 0.0, *node_it, 0);
      node->reading=0;
      it->node=node;
      m_matcher.invalidateActiveArea();
      m_matcher.registerScan(it->map, it->pose, plainReading);
      it->previousIndex=index;
      index++;
      node_it++;
    }
  }
  return hasResampled;
}

/*Implementation of the above stuff*/
template <class Particle, class Numeric>
std::vector<unsigned int> uniform_resampler<Particle, Numeric>:: resampleIndexes(const std::vector<Particle>& particles, int nparticles) const{
  Numeric cweight=0; //compute the cumulative weights
  unsigned int n=0;
  for (typename std::vector<Particle>::const_iterator it=particles.begin(); it!=particles.end(); ++it){
    cweight+=(Numeric)*it;
    n++;
  }
  if (nparticles>0) n=nparticles;
  Numeric interval = cweight/n; //compute the interval   4.5
  Numeric target=interval*::drand48(); //compute the initial target weight ::drand48() [0,1)之间保留4位小数的随机数
  cweight=0;  //compute the resampled indexes
  std::vector<unsigned int> indexes(n);
  n=0;
  unsigned int i=0;
  for (typename std::vector<Particle>::const_iterator it=particles.begin(); it!=particles.end(); ++it, ++i){
    cweight+=(Numeric)* it;
    while(cweight>target){
      indexes[n++]=i;
      target+=interval;
    }
  }
  return indexes;
}

/*  test code
#include <iostream>
#include <vector>
using namespace std;

int main()
{
   float particles[10] = {1,2,3,4,5,6,7,8,9,10};
   float interval = 1+2+3+4+5+6+7+8+9+10;
   interval /= 10.0;
   float target = interval*0.9;
   int n = 10;
   std::vector<float> indexes(n);
   cout << "interval:" << interval << " target:" <<target << endl;
   float cweight = 0;
   n = 0;
   for(int i = 0; i < 10;i++ )
   {
     cweight += particles[i];
     while(cweight > target)
     {
       indexes[n++] = i;
       target += interval;
       cout <<cweight << " index " << n << " : " << i << endl;
     }
   }
   return 0;
}
*/

resample code

#more weight , more possible

[template <class Particle, class Numeric>
std::vector<unsigned int> uniform_resampler<Particle, Numeric>:: resampleIndexes(const std::vector<Particle>& particles, int nparticles) const{
	Numeric cweight=0;]()
	//compute the cumulative weights
	unsigned int n=0;
	for (typename std::vector<Particle>::const_iterator it=particles.begin();                 it!=particles.end(); ++it){
		cweight+=(Numeric)*it;
		n++;
	}
	if (nparticles>0) n=nparticles;
	//compute the interval
	Numeric interval=cweight/n;
	//compute the initial target weight
	Numeric target=interval*::drand48();
	//compute the resampled indexes
	cweight=0;
	std::vector<unsigned int> indexes(n);
	n=0;
	unsigned int i=0;
	for (typename std::vector<Particle>::const_iterator it=particles.begin(); 		           it!=particles.end(); ++it, ++i){
		cweight+=(Numeric)* it;
		while(cweight>target){
			indexes[n++]=i;
			target+=interval;
		}
	}
	return indexes;
}

#resample

inline bool GridSlamProcessor::resample(const double* plainReading, int adaptSize, const RangeReading* reading){

    unsigned int j=0;
    for (unsigned int i=0; i<m_indexes.size(); i++){
      //cerr << " " << m_indexes[i];
      while(j<m_indexes[i]){
      	deletedParticles.push_back(j);
      	j++;
	  }
      if (j==m_indexes[i]) j++;
      Particle & p=m_particles[m_indexes[i]];
      TNode* node=0;
      TNode* oldNode=oldGeneration[m_indexes[i]];
      //cerr << i << "->" << m_indexes[i] << "B("<<oldNode->childs <<") ";
      node=new	TNode(p.pose, 0, oldNode, 0);
      //node->reading=0;
      node->reading=reading;
      //cerr << "A("<<node->parent->childs <<") " <<endl;
      temp.push_back(p);
      temp.back().node=node;
      temp.back().previousIndex=m_indexes[i];
    }
    while(j<m_indexes.size()){
      deletedParticles.push_back(j);
      j++;
    }
    //		cerr << endl;
    std::cerr <<  "Deleting Nodes:";
    for (unsigned int i=0; i<deletedParticles.size(); i++){
      std::cerr <<" " << deletedParticles[i];
      delete m_particles[deletedParticles[i]].node;
      m_particles[deletedParticles[i]].node=0;
    }
    std::cerr  << " Done" <<std::endl;

    //END: BUILDING TREE
    std::cerr << "Deleting old particles..." ;
    m_particles.clear();
    std::cerr << "Done" << std::endl;
    std::cerr << "Copying Particles and  Registering  scans...";
    for (ParticleVector::iterator it=temp.begin(); it!=temp.end(); it++){
      it->setWeight(0);
      m_matcher.invalidateActiveArea();
      m_matcher.registerScan(it->map, it->pose, plainReading);
      m_particles.push_back(*it);
    }
    std::cerr  << " Done" <<std::endl;
    hasResampled = true;
  }
  return hasResampled;
}
