在项目中我们总能遇到一些奇怪的需求。比如如标题描述一样在图片标记点位、文字、和自定义的形状？

1.先定义一块图片的区域~

    <div class="mapContainer" id="mapContainer" ref="mapContainer">
      <img
        id="myBiaoZhu"
        src="bg.jpg"
        alt=""
        style="height: 400px; width: 600px"
      />
      <el-button type="text" @click="startBiaoZhu">开始标注</el-button>
      <el-button type="text" @click="endBiaoZhu">标注完成</el-button>
    </div>

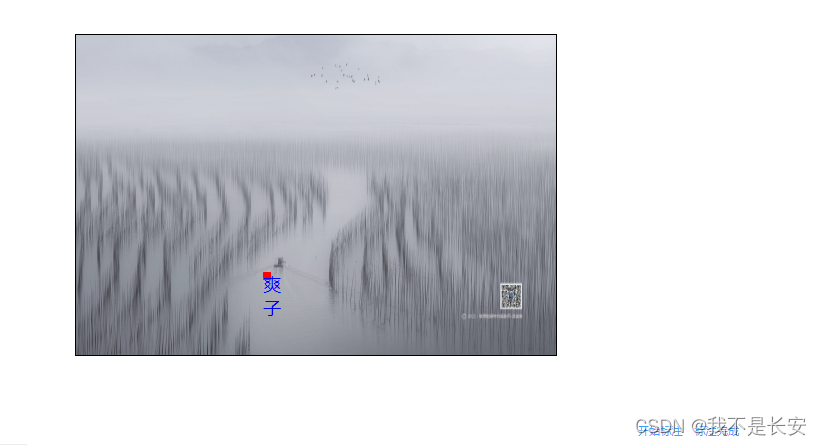

 如图：

首先定义我们展示到页面的对象

const state = reactive({
  banMa: [
    {
      id: 1,
      x: 240,
      y: 302,
    },
  ], //斑马线的数组
  canBiaoZhu: false, //是否可以进行标注
  pointColor: "red", //点的颜色
  pointSize: 10, //点的大小
});

其次在页面挂载时将我们原有的数组渲染到页面上~

onMounted(() => {
  for (let index = 0; index < state.banMa.length; index++) {
    createMarker(
      state.banMa[index].x,
      state.banMa[index].y,
    );
    return;
  }
});

点击图片时将点位固定

onMounted(() => {
  document.getElementById("myBiaoZhu").onmousedown = (e) => {
    e = e || window.event;
    if (e.button !== 2) {
      //判断是否右击
      if (state.canBiaoZhu) {
        //判断是否可以进行标注
        var x = e.offsetX || e.layerX;
        var y = e.offsetY || e.layerY;
        var myImg = document.querySelector("#myBiaoZhu");
        var currWidth = myImg.clientWidth;
        var currHeight = myImg.clientHeight;
        var ProportionWidthInImg = x / currWidth;
        var ProportionHeightInImg = y / currHeight;
        // console.log("图片比例高度："+ProportionHeightInImg)
        // console.log("图片比例宽度："+ProportionWidthInImg)
        state.banMa.push({
          id: state.banMa.length + 1,
          x,
          y,
        });
        createMarker(x, y);
      }
    }
  };
});

最后使用一个函数接收，并渲染到页面上。

function createMarker(x, y) {
  var div = document.createElement("div");
  div.className = "marker";
  div.id = "marker" + state.banMa.length;
  y = y + document.getElementById("myBiaoZhu").offsetTop - state.pointSize / 2;
  x = x + document.getElementById("myBiaoZhu").offsetLeft - state.pointSize / 2;
  div.style.width = state.pointSize + "px";
  div.style.height = state.pointSize + "px";
  div.style.backgroundColor = state.pointColor;
  div.style.left = x + "px";
  div.style.top = y + "px";
  div.innerHTML = "<div>自定义名称</div>";
  document.getElementById("mapContainer").appendChild(div);
}

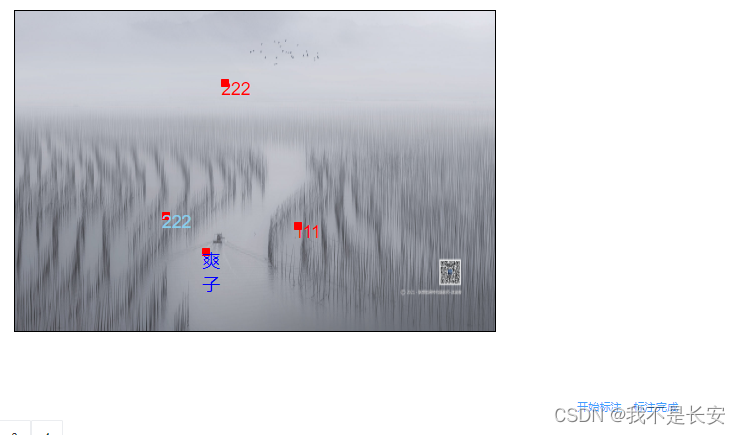

好啦现在就可以去试试啦
