消息队列中间件是分布式系统中重要的组件，主要解决应用耦合，异步消息，流量削锋等问题。实现高性能，高可用，可伸缩和最终一致性架构。是大型分布式系统不可缺少的中间件。目前在生产环境，使用较多的消息队列有ActiveMQ，RabbitMQ，ZeroMQ，Kafka，MetaMQ，RocketMQ等。

一、MQ使用场景

异步处理
流量削峰填谷（比如：秒杀）
解耦微服务

二、常见MQ产品对比

参考：https://www.imooc.com/article/290040

三、搭建RocketMQ

参考：https://www.imooc.com/article/290089

第1步：解压

第2步：在mq当前目录打开终端输入命令

nohup sh bin/mqnamesrv &

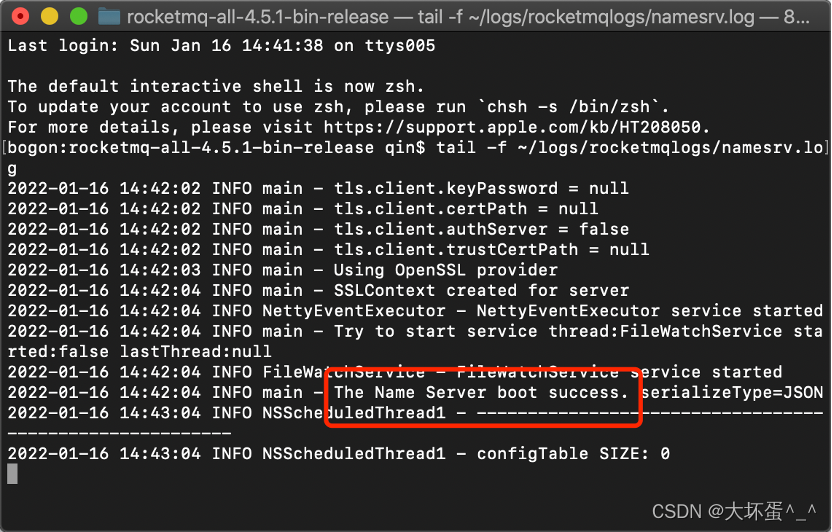

第3步：测试是否启动成功，命令：

        tail -f ~/logs/rocketmqlogs/namesrv.log

第4步：启动Broker，命令

nohup sh bin/mqbroker -n localhost:9876 &

第5步：测试Broker是否启动成功，命令

tail -f ~/logs/rocketmqlogs/broker.log

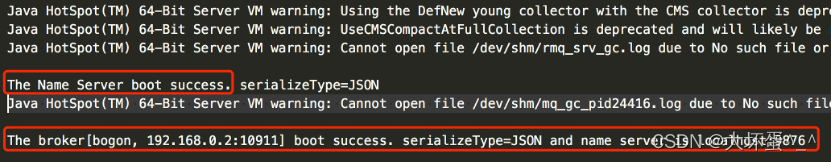

或者直接打开目录中自动生成的nohup.out文件看日志结果

停止：以此执行以下两条命令

# 命令

sh bin/mqshutdown broker

# 输出如下信息说明停止成功

The mqbroker(36695) is running…

Send shutdown request to mqbroker(36695) OK

# 命令

sh bin/mqshutdown namesrv

# 输出如下信息说明停止成功

The mqnamesrv(36664) is running…

Send shutdown request to mqnamesrv(36664) OK

四、搭建RocketMQ控制台

参考：

https://www.imooc.com/article/290092

下载课程提供的懒人包：rocketmq-console-ng-1.0.1.jar

在命令行中启动jar

java -jar rocketmq-console-ng-1.0.1.jar

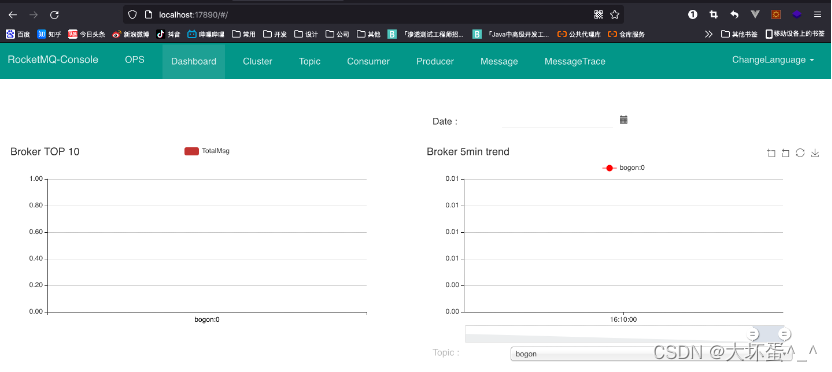

访问网页：

http://localhost:17890/

控制台使用说明参考：https://github.com/eacdy/rocketmq-externals/blob/master/rocketmq-console/doc/1_0_0/UserGuide_CN.md

五、RocketMQ实现分布式事务

半消息（Half（Prepare）Message）：暂时无法消费的消息。生产者将消息发送到了MQServer，但这个消息会被标记为“咱不能投递”状态，先储存起来；消费者不会去消费这条消息。
消息回查（Message Status Check）：网络断开或生产者重启可能导致丢失事务消息的第二次确认。当MQServer发现消息长时间出于半消息状态时，将向消息生产者发送请求，询问该消息的最终状态（提交或回滚）。

消息的三种状态

Commit：提交事务消息，消费者可以消费此消息
Rollback：回滚事务消息，broker会删除该消息，消费者不能消费
UNKNOWN：broker需要回查确认该消息的状态

六、SpringCloudStream

SpringCloudStream是一款用于构建消息驱动的微服务框架

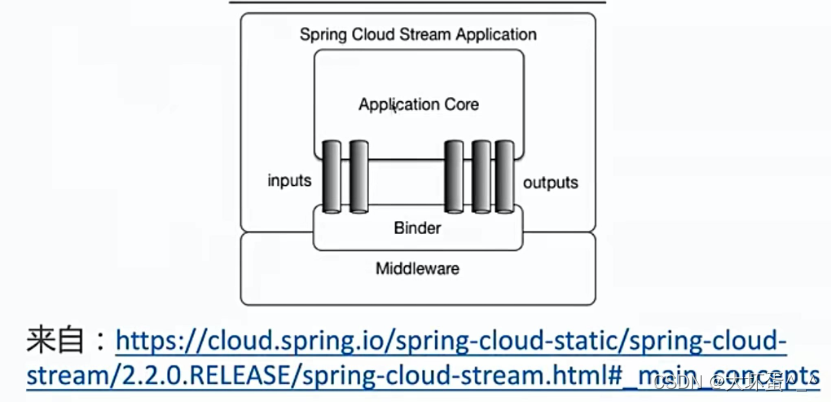

Spring Cloud Stream编程模型

Destination Binder（目标绑定器）：与消息中间件通信的组件
Destination Bindings（目标绑定）：Binding是连接应用程序跟消息中间件的桥梁，用于消息的消费和上产，由binder创建
Message：消息

6.1、用SpringCloudStream编写生产者

6.1.1、pom.xml中添加依赖

<dependency>
    <groupId>org.apache.rocketmq</groupId>
    <artifactId>rocketmq-spring-boot-starter</artifactId>
    <version>2.0.3</version>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-stream-rocketmq</artifactId>
</dependency>

6.1.2、BootApplication类添加注解

import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.messaging.Source;
@EnableBinding(Source.class)
public class ContentCenterApplication {
...
}

6.1.3、在application.yml中添加属性

spring:
  cloud:
    stream:
      rocketmq:
        binder:
          name-server: 127.0.0.1:9876
      bindings:
        output:
          #用来指定topic
          destination: stream-test-topic

6.1.4、在TestController中添加GetMapping

@Autowired
private Source source;
@GetMapping("/test-steam")
public String testStream(){
    this.source.output()
            .send(
                    MessageBuilder
                            .withPayload("消息体")
                            .build()
            );
    return "success";
}

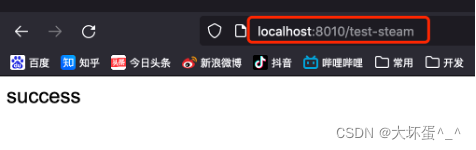

6.1.5、运行效果

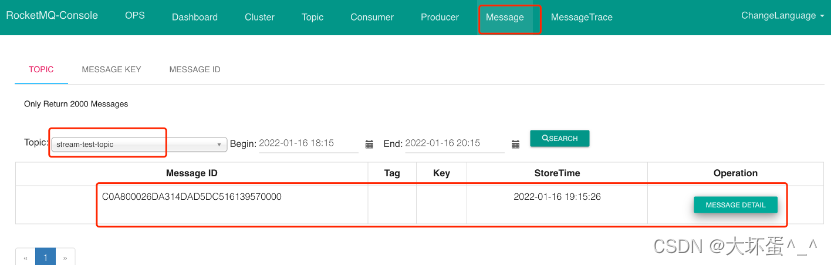

发现消息已经被投递到RokectMQ

修改application.yml配置属性，避免显示SPringCloudStream发送心跳包的日志

#设置日志输出级别
logging:
  level:
    com.itmuch.contentcenter.feignclient.UserCenterFeignClient: debug
    #避免显示SpringCloudStream发送心跳包的日志
    com.alibaba.nacos: error

6.2、SpringCloudStream编写消费者

6.2.1、在pom.xml中添加依赖

<dependency>
    <groupId>org.apache.rocketmq</groupId>
    <artifactId>rocketmq-spring-boot-starter</artifactId>
    <version>2.0.3</version>
</dependency>
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-stream-rocketmq</artifactId>
</dependency>

6.2.2、在BootApplication中添加注解

import org.springframework.cloud.stream.messaging.Sink;
@EnableBinding(Sink.class)
public class UserCenterApplication {
...
}

6.2.3、在application.yml中添加属性

spring:
  cloud:
    stream:
      rocketmq:
        binder:
          name-server: 127.0.0.1:9876
      bindings:
        input:
          #用来指定topic，要和content-center微服务的topic匹配
          destination: stream-test-topic
          #一定要设置，必填项，如果用其他MQ，该属性可以不设置
          group: binder-group

6.2.4、添加测试Service

package personal.qin.usercenter.rocketmq;//package com.itmuch.usercenter.rocketmq;

import lombok.extern.slf4j.Slf4j;
import org.springframework.cloud.stream.annotation.StreamListener;
import org.springframework.cloud.stream.messaging.Sink;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.ErrorMessage;
import org.springframework.stereotype.Service;

@Service
@Slf4j
public class TestStreamConsumer {

    @StreamListener(Sink.INPUT)
    public void receive(String messageBody){
        log.info("通过stream收到了消息：messageBody={}", messageBody);
//        throw IllegalArgumentException("抛异常")
    }

    /**
     * 全局异常处理
     *
     * @param message 发生异常的消息
     */
    @StreamListener("errorChannel")
    public void error(Message<?> message) {
        ErrorMessage errorMessage = (ErrorMessage) message;
        log.warn("RocketMQ-SpringCloudStream发生异常，errorMessage={}", errorMessage);
    }
}

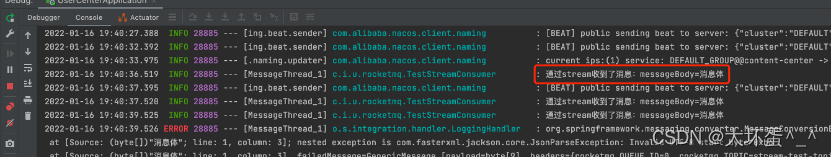

6.2.5、测试运行效果，可以正常消费消息

七、消息过滤

参考：https://www.imooc.com/article/290424

八、SpringCloudStream异常处理

参考：https://www.imooc.com/article/290435

九、SpringCloudStream+RocketMQ实现生产者分布式事务（事务消息）

9.1、修改application.yml

spring:
  cloud:
    stream:
      rocketmq:
        binder:
          name-server: 127.0.0.1:9876
        #添加事务控制时使用
        bindings:
          output:
            producer:
              #事务消息
              transactional: true
              #要和@RocketMQTransactionListener的txProducerGroup的值一致
              group: tx-add-bonus-group

9.2、新建添加积分事务监听类

package com.itmuch.contentcenter.rocketmq;

import com.alibaba.fastjson.JSON;
import com.itmuch.contentcenter.dao.messaging.RocketmqTransactionLogMapper;
import com.itmuch.contentcenter.domain.dto.content.ShareAuditDTO;
import com.itmuch.contentcenter.domain.entity.messaging.RocketmqTransactionLog;
import com.itmuch.contentcenter.service.content.ShareService;
import lombok.RequiredArgsConstructor;
import org.apache.rocketmq.spring.annotation.RocketMQTransactionListener;
import org.apache.rocketmq.spring.core.RocketMQLocalTransactionListener;
import org.apache.rocketmq.spring.core.RocketMQLocalTransactionState;
import org.apache.rocketmq.spring.support.RocketMQHeaders;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHeaders;

@RocketMQTransactionListener(txProducerGroup = "tx-add-bonus-group")
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class AddBonusTransactionListener implements RocketMQLocalTransactionListener {
    private final ShareService shareService;
    private final RocketmqTransactionLogMapper rocketmqTransactionLogMapper;

    @Override
    public RocketMQLocalTransactionState executeLocalTransaction(Message msg, Object arg) {
        MessageHeaders headers = msg.getHeaders();

        String transactionId = (String) headers.get(RocketMQHeaders.TRANSACTION_ID);
        Integer shareId = Integer.valueOf((String) headers.get("share_id"));

        String dtoString = (String) headers.get("dto");
        ShareAuditDTO auditDTO = JSON.parseObject(dtoString, ShareAuditDTO.class);

        try {
            this.shareService.auditByIdWithRocketMqLog(shareId, auditDTO, transactionId);
            return RocketMQLocalTransactionState.COMMIT;
        } catch (Exception e) {
            return RocketMQLocalTransactionState.ROLLBACK;
        }
    }

    @Override
    public RocketMQLocalTransactionState checkLocalTransaction(Message msg) {
        MessageHeaders headers = msg.getHeaders();
        String transactionId = (String) headers.get(RocketMQHeaders.TRANSACTION_ID);

        // select * from xxx where transaction_id = xxx
        RocketmqTransactionLog transactionLog = this.rocketmqTransactionLogMapper.selectOne(
            RocketmqTransactionLog.builder()
                .transactionId(transactionId)
                .build()
        );
        if (transactionLog != null) {
            return RocketMQLocalTransactionState.COMMIT;
        }
        return RocketMQLocalTransactionState.ROLLBACK;
    }
}

9.3、ShareService类

package com.itmuch.contentcenter.service.content;

import com.alibaba.fastjson.JSON;
import com.itmuch.contentcenter.dao.content.ShareMapper;
import com.itmuch.contentcenter.dao.messaging.RocketmqTransactionLogMapper;
import com.itmuch.contentcenter.domain.dto.content.ShareAuditDTO;
import com.itmuch.contentcenter.domain.dto.content.ShareDTO;
import com.itmuch.contentcenter.domain.dto.messaging.UserAddBonusMsgDTO;
import com.itmuch.contentcenter.domain.dto.user.UserDTO;
import com.itmuch.contentcenter.domain.entity.content.Share;
import com.itmuch.contentcenter.domain.entity.messaging.RocketmqTransactionLog;
import com.itmuch.contentcenter.domain.enums.AuditStatusEnum;
import com.itmuch.contentcenter.feignclient.UserCenterFeignClient;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.apache.rocketmq.spring.core.RocketMQTemplate;
import org.apache.rocketmq.spring.support.RocketMQHeaders;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.stream.messaging.Source;
import org.springframework.http.ResponseEntity;
import org.springframework.messaging.support.MessageBuilder;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.client.RestTemplate;

import java.util.Objects;
import java.util.UUID;

@Slf4j
@Service
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class ShareService {
    private final ShareMapper shareMapper;
//    private final RestTemplate restTemplate;
    private final UserCenterFeignClient userCenterFeignClient;
    private final RocketMQTemplate rocketMQTemplate;
    private final RocketmqTransactionLogMapper rocketmqTransactionLogMapper;
    private final Source source;

    public ShareDTO findById(Integer id){
        Share share= this.shareMapper.selectByPrimaryKey(id);
        Integer userId = share.getUserId();

        //调用用户微服务的/users/{userId}
        //用HttpGet方法去请求，并返回一个对象
//        ResponseEntity<UserDTO> forEntity = restTemplate.getForEntity(
//                "http://localhost:8080/users/{id}",
//                UserDTO.class,
//                userId);
//        //获取响应的状态码
//        HttpStatus statusCode = forEntity.getStatusCode();

//        UserDTO userDTO = this.restTemplate.getForObject(
//                "http://user-center/users/{userId}", //Ribbon会自动把user-center转换成其在nacos上注册的地址，并且进行负载均衡
//                UserDTO.class, userId);

        UserDTO userDTO = this.userCenterFeignClient.findById(userId);

        //消息的装配
        ShareDTO shareDTO = new ShareDTO();
        BeanUtils.copyProperties(share, shareDTO); //将share对象中的数据拷贝到shareDTO对象
        shareDTO.setWxNickname(userDTO.getWxNickname());
        return shareDTO;
    }

    public Share auditById(Integer id, ShareAuditDTO auditDTO) {
        // 1. 查询share是否存在，不存在或者当前的audit_status != NOT_YET，那么抛异常
        Share share = this.shareMapper.selectByPrimaryKey(id);
        if (share == null) {
            throw new IllegalArgumentException("参数非法！该分享不存在！");
        }
        if (!Objects.equals("NOT_YET", share.getAuditStatus())) {
            throw new IllegalArgumentException("参数非法！该分享已审核通过或审核不通过！");
        }

        // 3. 如果是PASS，那么发送消息给rocketmq，让用户中心去消费，并为发布人添加积分
        if (AuditStatusEnum.PASS.equals(auditDTO.getAuditStatusEnum())) {
            // 发送半消息。。
            String transactionId = UUID.randomUUID().toString();

            this.source.output()
                    .send(
                            MessageBuilder
                                    .withPayload(
                                            UserAddBonusMsgDTO.builder()
                                                    .userId(share.getUserId())
                                                    .bonus(50)
                                                    .build()
                                    )
                                    // header也有妙用...
                                    .setHeader(RocketMQHeaders.TRANSACTION_ID, transactionId)
                                    .setHeader("share_id", id)
                                    .setHeader("dto", JSON.toJSONString(auditDTO))
                                    .build()
                    );
        } else {
            this.auditByIdInDB(id, auditDTO);
        }
        return share;
    }

    @Transactional(rollbackFor = Exception.class)
    public void auditByIdInDB(Integer id, ShareAuditDTO auditDTO) {
        Share share = Share.builder()
                .id(id)
                .auditStatus(auditDTO.getAuditStatusEnum().toString())
                .reason(auditDTO.getReason())
                .build();
        this.shareMapper.updateByPrimaryKeySelective(share);

        // 4. 把share写到缓存
    }

    @Transactional(rollbackFor = Exception.class)
    public void auditByIdWithRocketMqLog(Integer id, ShareAuditDTO auditDTO, String transactionId) {
        this.auditByIdInDB(id, auditDTO);

        this.rocketmqTransactionLogMapper.insertSelective(
                RocketmqTransactionLog.builder()
                        .transactionId(transactionId)
                        .log("审核分享...")
                        .build()
        );
    }
}

9.4、ShareAdminController类

package com.itmuch.contentcenter.controller.content;

//import com.itmuch.contentcenter.auth.CheckAuthorization;
import com.itmuch.contentcenter.domain.dto.content.ShareAuditDTO;
import com.itmuch.contentcenter.domain.entity.content.Share;
import com.itmuch.contentcenter.service.content.ShareService;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/admin/shares")
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class ShareAdminController {
    private final ShareService shareService;
    @PutMapping("/audit/{id}")
//    @CheckAuthorization("admin") //认证和授权
    public Share auditById(@PathVariable Integer id, @RequestBody ShareAuditDTO auditDTO) {
        return this.shareService.auditById(id, auditDTO);
    }

}

十、SpringCloudStream+RocketMQ实现消费者分布式事务（事务消息）

10.1、修改application.yml

spring:
  cloud:
    stream:
      rocketmq:
        binder:
          name-server: 127.0.0.1:9876
      bindings:
        input:
          #用来指定topic，要和content-center微服务的topic匹配
          destination: add-bonus
          #一定要设置，必填项，如果用其他MQ，该属性可以不设置
          group: binder-group

10.2、UserService类

package com.itmuch.usercenter.service.user;

import com.itmuch.usercenter.dao.bonus.BonusEventLogMapper;
import com.itmuch.usercenter.dao.user.UserMapper;
import com.itmuch.usercenter.domain.dto.messaging.UserAddBonusMsgDTO;
import com.itmuch.usercenter.domain.entity.bonus.BonusEventLog;
import com.itmuch.usercenter.domain.entity.user.User;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.Date;

@Slf4j
@Service
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class UserService {

    private final UserMapper userMapper;
    private final BonusEventLogMapper bonusEventLogMapper;

    public User findById(Integer id){
        return this.userMapper.selectByPrimaryKey(id);
    }

    @Transactional(rollbackFor = Exception.class)
    public void addBonus(UserAddBonusMsgDTO msgDTO) {
        // 1. 为用户加积分
        Integer userId = msgDTO.getUserId();
        Integer bonus = msgDTO.getBonus();
        User user = this.userMapper.selectByPrimaryKey(userId);

        user.setBonus(user.getBonus() + bonus);
        this.userMapper.updateByPrimaryKeySelective(user);

        // 2. 记录日志到bonus_event_log表里面
        this.bonusEventLogMapper.insert(
                BonusEventLog.builder()
                        .userId(userId)
                        .value(bonus)
                        .event(msgDTO.getEvent())
                        .createTime(new Date())
                        .description(msgDTO.getDescription())
                        .build()
        );
        log.info("积分添加完毕...");
    }
}

10.3、AddBonusStreamConsumer类

package com.itmuch.usercenter.rocketmq;

import com.itmuch.usercenter.dao.bonus.BonusEventLogMapper;
import com.itmuch.usercenter.dao.user.UserMapper;
import com.itmuch.usercenter.domain.dto.messaging.UserAddBonusMsgDTO;
import com.itmuch.usercenter.domain.entity.bonus.BonusEventLog;
import com.itmuch.usercenter.domain.entity.user.User;
import com.itmuch.usercenter.service.user.UserService;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.stream.annotation.StreamListener;
import org.springframework.cloud.stream.messaging.Sink;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
@Slf4j
public class AddBonusStreamConsumer {
    private final UserService userService;

    @StreamListener(Sink.INPUT)
    public void receive(UserAddBonusMsgDTO message) {
        message.setEvent("CONTRIBUTE");
        message.setDescription("投稿加积分..");
        this.userService.addBonus(message);
    }
}

10.4、BonusController类

package com.itmuch.usercenter.controller.user;

import com.itmuch.usercenter.domain.dto.messaging.UserAddBonusMsgDTO;
import com.itmuch.usercenter.domain.dto.user.UserAddBonseDTO;
import com.itmuch.usercenter.domain.entity.user.User;
import com.itmuch.usercenter.service.user.UserService;
import lombok.RequiredArgsConstructor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/users")
@RequiredArgsConstructor(onConstructor = @__(@Autowired))
public class BonusController {
    private final UserService userService;

    @PutMapping("/add-bonus")
    public User addBonus(@RequestBody UserAddBonseDTO userAddBonseDTO) {
        Integer userId = userAddBonseDTO.getUserId();
        userService.addBonus(
            UserAddBonusMsgDTO.builder()
                .userId(userId)
                .bonus(userAddBonseDTO.getBonus())
                .description("兑换分享...")
                .event("BUY")
                .build()
        );
        return this.userService.findById(userId);
    }
}

十一、知识盘点

参考：https://www.imooc.com/article/290489

原文链接：https://blog.csdn.net/qzc70919700/article/details/122580384

SpringCloud第09讲：消息队列RocketMQ

一、MQ使用场景

二、常见MQ产品对比

三、搭建RocketMQ

四、搭建RocketMQ控制台

五、RocketMQ实现分布式事务

六、SpringCloudStream

6.1、用SpringCloudStream编写生产者

6.1.1、pom.xml中添加依赖

6.1.2、BootApplication类添加注解

6.1.3、在application.yml中添加属性

6.1.4、在TestController中添加GetMapping

6.1.5、运行效果

6.2、SpringCloudStream编写消费者

6.2.1、在pom.xml中添加依赖

6.2.2、在BootApplication中添加注解

6.2.3、在application.yml中添加属性

6.2.4、添加测试Service

6.2.5、测试运行效果，可以正常消费消息

七、消息过滤

八、SpringCloudStream异常处理

九、SpringCloudStream+RocketMQ实现生产者分布式事务（事务消息）

9.1、修改application.yml

9.2、新建添加积分事务监听类

9.3、ShareService类

9.4、ShareAdminController类

十、SpringCloudStream+RocketMQ实现消费者分布式事务（事务消息）

10.1、修改application.yml

10.2、UserService类

10.3、AddBonusStreamConsumer类

10.4、BonusController类

十一、知识盘点

标签云

近期文章

分类

SpringCloud第09讲：消息队列RocketMQ

一、MQ使用场景

二、常见MQ产品对比

三、搭建RocketMQ

四、搭建RocketMQ控制台

五、RocketMQ实现分布式事务

六、SpringCloudStream

6.1、用SpringCloudStream编写生产者

6.1.1、pom.xml中添加依赖

6.1.2、BootApplication类添加注解

6.1.3、在application.yml中添加属性

6.1.4、在TestController中添加GetMapping

6.1.5、运行效果

6.2、SpringCloudStream编写消费者

6.2.1、在pom.xml中添加依赖

6.2.2、在BootApplication中添加注解

6.2.3、在application.yml中添加属性

6.2.4、添加测试Service

6.2.5、测试运行效果 ，可以正常消费消息

七、消息过滤

八、SpringCloudStream异常处理

九、SpringCloudStream+RocketMQ实现生产者分布式事务（事务消息）

9.1、修改application.yml

9.2、新建添加积分事务监听类

9.3、ShareService类

9.4、ShareAdminController类

十、SpringCloudStream+RocketMQ实现消费者分布式事务（事务消息）

10.1、修改application.yml

10.2、UserService类

10.3、AddBonusStreamConsumer类

10.4、BonusController类

十一、知识盘点

相关文章

6.2.5、测试运行效果，可以正常消费消息
