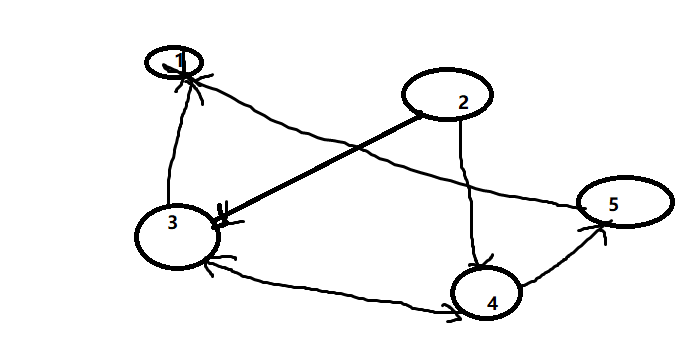

图如下:
package com;
public class Main {
public static void main(String[] args) {
// 邻接矩阵
int adjacency[][] = { { 0, 0, 0, 0, 0 }, { 0, 0, 1, 1, 0 }, { 1, 0, 0, 1, 0 }, { 0, 0, 1, 0, 1 },
{ 1, 0, 0, 0, 0 } };
// 可达矩阵
int reachability[][] = null;
System.out.println("邻接矩阵：");
show(adjacency);
reachability = addUnit(adjacency);
show(reachability);
int n = 0;
do {
n++;
reachability = square(reachability);
reachability = format(reachability);
System.out.println("第" + n + "次布尔运算");
show(reachability);
} while (!equals(reachability, format(square(reachability))));
System.out.println("可达矩阵：");
show(reachability);
}
// 矩阵+单位矩阵
public static int[][] addUnit(int primitive[][]) {
int[][] result = new int[primitive.length][primitive.length];
for (int x = 0; x < primitive.length; x++) {
for (int y = 0; y < primitive[x].length; y++) {
result[x][y] = primitive[x][y];
}
}
for (int i = 0; i < result.length; i++) {
for (int j = 0; j < result[i].length; j++) {
if (i == j) {
result[i][j] = 1;
}
}
}
return result;
}
// 打印矩阵
public static void show(int matrix[][]) {
for (int i = 0; i < matrix.length; i++) {
for (int j = 0; j < matrix[i].length; j++) {
System.out.print(matrix[i][j] + ",");
}
System.out.println();
}
System.out.println();
}
// 矩阵是否相等
public static boolean equals(int a[][], int b[][]) {
if (a.length != b.length) {// 行数是否相等
return false;
} else {
for (int i = 0; i < a.length; i++) {
if (a[i].length != b[i].length) {// i行列数是否相等
return false;
} else {
for (int j = 0; j < a[i].length; j++) {
if (a[i][j] != b[i][j]) {// i行j列的数值是否相等
return false;
}
}
}
}
}
return true;
}
// 矩阵自乘
public static int[][] square(int primitive[][]) {
int[][] result = new int[primitive.length][primitive.length];
int[][] list = new int[primitive.length][primitive.length];
for (int x = 0; x < primitive.length; x++) {
for (int y = 0; y < primitive[x].length; y++) {
result[x][y] = primitive[x][y];
}
}
int temp;
for (int i = 0; i < result.length; i++) {
for (int n = 0; n < result[i].length; n++) {
temp = 0;
for (int j = 0; j < result[i].length; j++) {
temp += result[i][j] * result[j][n];
}
list[i][n] = temp;
}
}
return list;
}
// 格式化
public static int[][] format(int primitive[][]) {
int[][] result = new int[primitive.length][primitive.length];
for (int x = 0; x < primitive.length; x++) {
for (int y = 0; y < primitive[x].length; y++) {
result[x][y] = primitive[x][y];
}
}
for (int i = 0; i < result.length; i++) {
for (int j = 0; j < result[i].length; j++) {
if (result[i][j] > 0) {
result[i][j] = 1;
}
}
}
return result;
}
}
// 输出
邻接矩阵：
0,0,0,0,0,
0,0,1,1,0,
1,0,0,1,0,
0,0,1,0,1,
1,0,0,0,0,
1,0,0,0,0,
0,1,1,1,0,
1,0,1,1,0,
0,0,1,1,1,
1,0,0,0,1,
第1次布尔运算
1,0,0,0,0,
1,1,1,1,1,
1,0,1,1,1,
1,0,1,1,1,
1,0,0,0,1,
可达矩阵：
1,0,0,0,0,
1,1,1,1,1,
1,0,1,1,1,
1,0,1,1,1,
1,0,0,0,1,
