SpringBoot+Mybatis(JavaConfig方式配置)

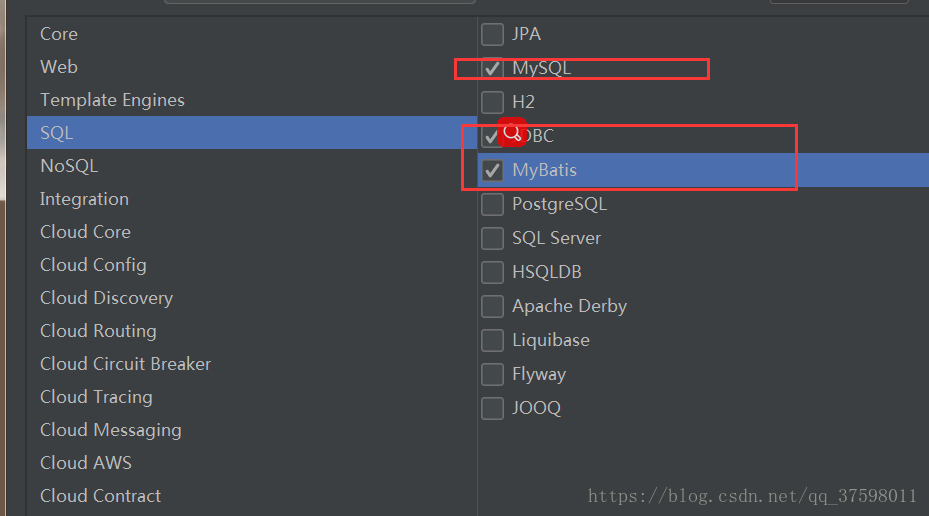

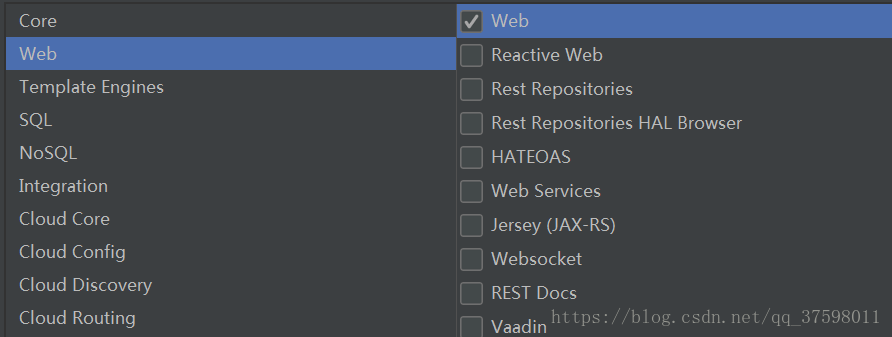

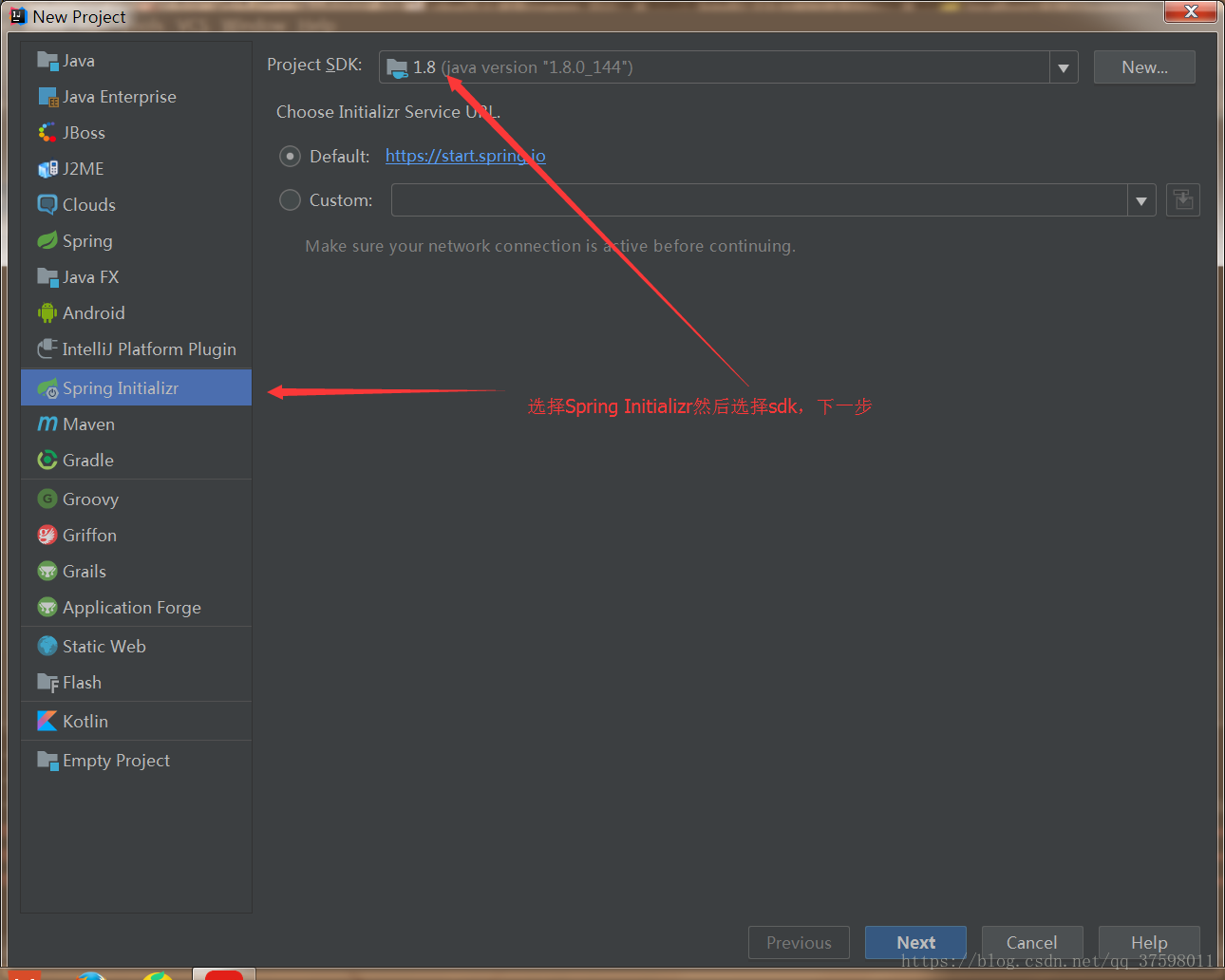

1.配置项目

然后完成

2.项目目录结构：

3.SpringBoot与Mybatis整合：

贴上需要的Maven的pom.xml文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.zzf</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.4</version>
        </dependency>


        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-joda</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.module</groupId>
            <artifactId>jackson-module-parameter-names</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

Mybatis的全局配置文件：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">

<configuration>
    <settings>
        <!-- 获取数据库自增主键值 -->
        <setting name="useGeneratedKeys" value="true"/>
        <!-- 使用列标签替换列别名 默认:true -->
        <setting name="useColumnLabel" value="true"/>
        <!-- 开启驼峰命名转换 -->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>
</configuration>

application.yml配置文件

# 设置数据库相关属性
spring.datasource.driver-class-name: com.mysql.jdbc.Driver
spring.datasource.url: jdbc:mysql://localhost:3306/要连接的数据库
spring.datasource.username: 数据库用户名
spring.datasource.password: 数据库密码


# 设置MyBatis 的全局配置文件，mapper 接口路径，mapper 接口对应的xml 配置文件
mybatis.config.path: mybatis-config.xml
mapper.xml.config.path: /mapperConfig/**.xml
mapper.package.path: com.zzf.mapper

下面贴上JavaConfig文件：

首先贴上我的XML文件来讲讲为什么这么配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">
<!-- <tx:annotation-driven/> 就是支持事务注解的（@Transactional）  -->
	 	<!--配置整合mybatis过程
	    1.配置数据库相关参数 properties的属性 ：${url}-->
	     <context:property-placeholder location="classpath:jdbc.properties"/>

       <!--2.数据库连接池-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!--配置连接池属性-->
        <property name="driverClass" value="${driver}" />

        <!-- 基本属性 url、user、password -->
        <property name="jdbcUrl" value="${url}" />
        <property name="user" value="${user}" />
        <property name="password" value="${password}" />

        <!--c3p0私有属性-->
        <property name="maxPoolSize" value="30"/><!-- 最多保存30个连接对象 -->
        <property name="minPoolSize" value="10"/>
        <!--关闭连接后不自动commit-->
        <property name="autoCommitOnClose" value="false"/>

        <!--获取连接超时时间-->
        <property name="checkoutTimeout" value="1000"/>
        <!--当获取连接失败重试次数-->
        <property name="acquireRetryAttempts" value="20"/>
	</bean>

	<!--约定大于配置-->
    <!--３.配置SqlSessionFactory对象-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--往下才是mybatis和spring真正整合的配置-->
        <!--注入数据库连接池-->
        <property name="dataSource" ref="dataSource"/>
        <!--配置mybatis全局配置文件:mybatis-config.xml-->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <!--扫描entity包,使用别名,多个用;隔开-->
        <property name="typeAliasesPackage" value="org.seckill.entity"/>
        <!--扫描sql配置文件:mapper需要的xml文件-->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
	</bean>

	    <!--４:配置扫描Dao接口包,动态实现DAO接口,注入到spring容器-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--注入SqlSessionFactory，当启动时有可能连接池未加载导致加载错误所以采用后加载的方式-->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描的Dao接口-->
        <property name="basePackage" value="org.seckill.dao"/>
	</bean>
</beans>

首先配置dataSource数据库连接池

package com.zzf.config;

import com.mchange.v2.c3p0.ComboPooledDataSource;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.SpringBootConfiguration;
import org.springframework.context.annotation.Bean;

import javax.sql.DataSource;
import java.beans.PropertyVetoException;

@MapperScan("com.zzf.mapper")
@SpringBootConfiguration
public class DataSourceConfiguration {

    @Value("${spring.datasource.driver-class-name}")
    private String jdbcDriver;
    @Value("${spring.datasource.url}")
    private String jdbcUrl;
    @Value("${spring.datasource.username}")
    private String jdbcUser;
    @Value("${spring.datasource.password}")
    private String jdbcPassword;

    @Bean
    public DataSource createDataSource() throws PropertyVetoException {
        ComboPooledDataSource dataSource = new ComboPooledDataSource();

        dataSource.setDriverClass(jdbcDriver);
        dataSource.setJdbcUrl(jdbcUrl);
        dataSource.setUser(jdbcUser);
        dataSource.setPassword(jdbcPassword);
        // 关闭连接后不自动提交
        dataSource.setAutoCommitOnClose(false);

        return dataSource;
    }
}

然后配置sqlSessionFactory

package com.zzf.config;

import org.mybatis.spring.SqlSessionFactoryBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.SpringBootConfiguration;
import org.springframework.context.annotation.Bean;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import javax.sql.DataSource;
import java.io.IOException;


@SpringBootConfiguration
public class SessionFactoryConfiguration {

    @Value("${mybatis.config.path}")
    private String myBatisConfigPath;
    @Value("${mapper.xml.config.path}")
    private String mapperXMLConfigPath;
    @Value("${mapper.package.path}")
    private String mapperPackagePath;
    @Autowired
    private DataSource dataSource;

    @Bean
    public SqlSessionFactoryBean createSqlSessionFactory() throws IOException {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        PathMatchingResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();
        String packageXMLConfigPath = PathMatchingResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX + mapperXMLConfigPath;

        // 设置MyBatis 配置文件的路径
        sqlSessionFactoryBean.setConfigLocation(new ClassPathResource(myBatisConfigPath));
        // 设置mapper 对应的XML 文件的路径
        sqlSessionFactoryBean.setMapperLocations(resolver.getResources(packageXMLConfigPath));
        // 设置数据源
        sqlSessionFactoryBean.setDataSource(dataSource);
        // 设置mapper 接口所在的包
        sqlSessionFactoryBean.setTypeAliasesPackage(mapperPackagePath);

        return sqlSessionFactoryBean;
    }
}

事实上到这一步SpirngBoot与Mybatis的整合已经好了……（感觉好方便）

因为有事物所以我加了个事物的配置：

package com.zzf.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringBootConfiguration;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.transaction.annotation.TransactionManagementConfigurer;

import javax.sql.DataSource;

/**
 * @EnableTransactionManagement 注解用于开启事务
 **/
@SpringBootConfiguration
@EnableTransactionManagement
public class TransactionManagementConfiguration implements TransactionManagementConfigurer {

    @Autowired
    private DataSource dataSource;

    @Override
    public PlatformTransactionManager annotationDrivenTransactionManager() {
        return new DataSourceTransactionManager(dataSource);
    }
}

然后就是填写mapper(dao)层，service层，controller层，数据库映射

先看Mapper层：

package com.zzf.mapper;


import org.springframework.stereotype.Component;

import java.util.List;
import java.util.Map;

@Component
public interface DemoMapper {

    List<Map<String,Object>> getall();
}

它的映射文件：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.zzf.mapper.DemoMapper">

    <select id="getall" resultType="Map">
      SELECT  *
      FROM seckill
    </select>

</mapper>

service层：

package com.zzf.service;

import org.springframework.transaction.annotation.Transactional;

import java.util.List;
import java.util.Map;
@Transactional
public interface DemoService {

    List<Map<String,Object>> getall();
}

它的实现类：

package com.zzf.service.impl;

import com.zzf.mapper.DemoMapper;
import com.zzf.service.DemoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Map;


@Service
public class AreaServiceImpl implements DemoService {

    @Autowired
    private DemoMapper demoMapper;


    @Override
    public List<Map<String, Object>> getall() {
        return demoMapper.getall();
    }
}

然后看下controller层：

package com.zzf.controller;

import com.zzf.service.DemoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;


@RestController
@RequestMapping("/zzf")
public class AreaController {

    @Autowired
    private DemoService demoService;

    @GetMapping("/getall")
    public Map<String,Object> getall(){
        List<Map<String,Object>> map=demoService.getall();
        Map<String,Object> map1 = new HashMap<String,Object>();
        map1.put("data",map);
        return map1;
    }

}

最后设置启动类：

package com.zzf.demo;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication(scanBasePackages = "com.zzf")
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }
}

Ok~SpringBoot与Mybatis的整合（JavaConfig实现）
