Nacos服务注册需要具备的能力

服务提供者把自己的协议地址注册到Nacos server
服务消费者需要从Nacos Server上去查询服务提供者的地址（根据服务名称）
Nacos Server需要感知到服务提供者的上下线的变化
服务消费者需要动态感知到Nacos Server端服务地址的变化

Nacos API

SDK(底层也是基于open Api调用) / OPEN API（Rest 接口）

服务注册

void registerInstance(String serviceName, String ip, int port) throws NacosException;

void registerInstance(String serviceName, String ip, int port, String clusterName) throws NacosException;

void registerInstance(String serviceName, Instance instance) throws NacosException;

请求参数

名称	类型	描述
serviceName	字符串	服务名
ip	字符串	服务实例IP
port	int	服务实例port
clusterName	字符串	集群名
instance	参见代码注释	实例属性

请求示例

NamingService naming = NamingFactory.createNamingService(System.getProperty("serveAddr"));
naming.registerInstance("nacos.test.3", "11.11.11.11", 8888, "TEST1");

Instance instance = new Instance();
instance.setIp("55.55.55.55");
instance.setPort(9999);
instance.setHealthy(false);
instance.setWeight(2.0);
Map<String, String> instanceMeta = new HashMap<>();
instanceMeta.put("site", "et2");
instance.setMetadata(instanceMeta);

Service service = new Service("nacos.test.4");
service.setApp("nacos-naming");
service.sethealthCheckMode("server");
service.setEnableHealthCheck(true);
service.setProtectThreshold(0.8F);
service.setGroup("CNCF");
Map<String, String> serviceMeta = new HashMap<>();
serviceMeta.put("symmetricCall", "true");
service.setMetadata(serviceMeta);
instance.setService(service);

Cluster cluster = new Cluster();
cluster.setName("TEST5");
AbstractHealthChecker.Http healthChecker = new AbstractHealthChecker.Http();
healthChecker.setExpectedResponseCode(400);
healthChecker.setCurlHost("USer-Agent|Nacos");
healthChecker.setCurlPath("/xxx.html");
cluster.setHealthChecker(healthChecker);
Map<String, String> clusterMeta = new HashMap<>();
clusterMeta.put("xxx", "yyyy");
cluster.setMetadata(clusterMeta);

instance.setCluster(cluster);

naming.registerInstance("nacos.test.4", instance);

服务查询

List<Instance> getAllInstances(String serviceName) throws NacosException;

List<Instance> getAllInstances(String serviceName, List<String> clusters) throws NacosException;

请求参数

名称	类型	描述
serviceName	字符串	服务名
clusters	List	集群列表

请求示例

NamingService naming = NamingFactory.createNamingService(System.getProperty("serveAddr"));
System.out.println(naming.getAllInstances("nacos.test.3"));

心跳机制

心跳的发送间隔
心跳的超时时间
- 设置一个心跳超时的阈值
- 记录针对于某一个服务实例的最后一次更新的时间
- 当前时间-当前实例最后一次更新的时间> 心跳超时的阈值

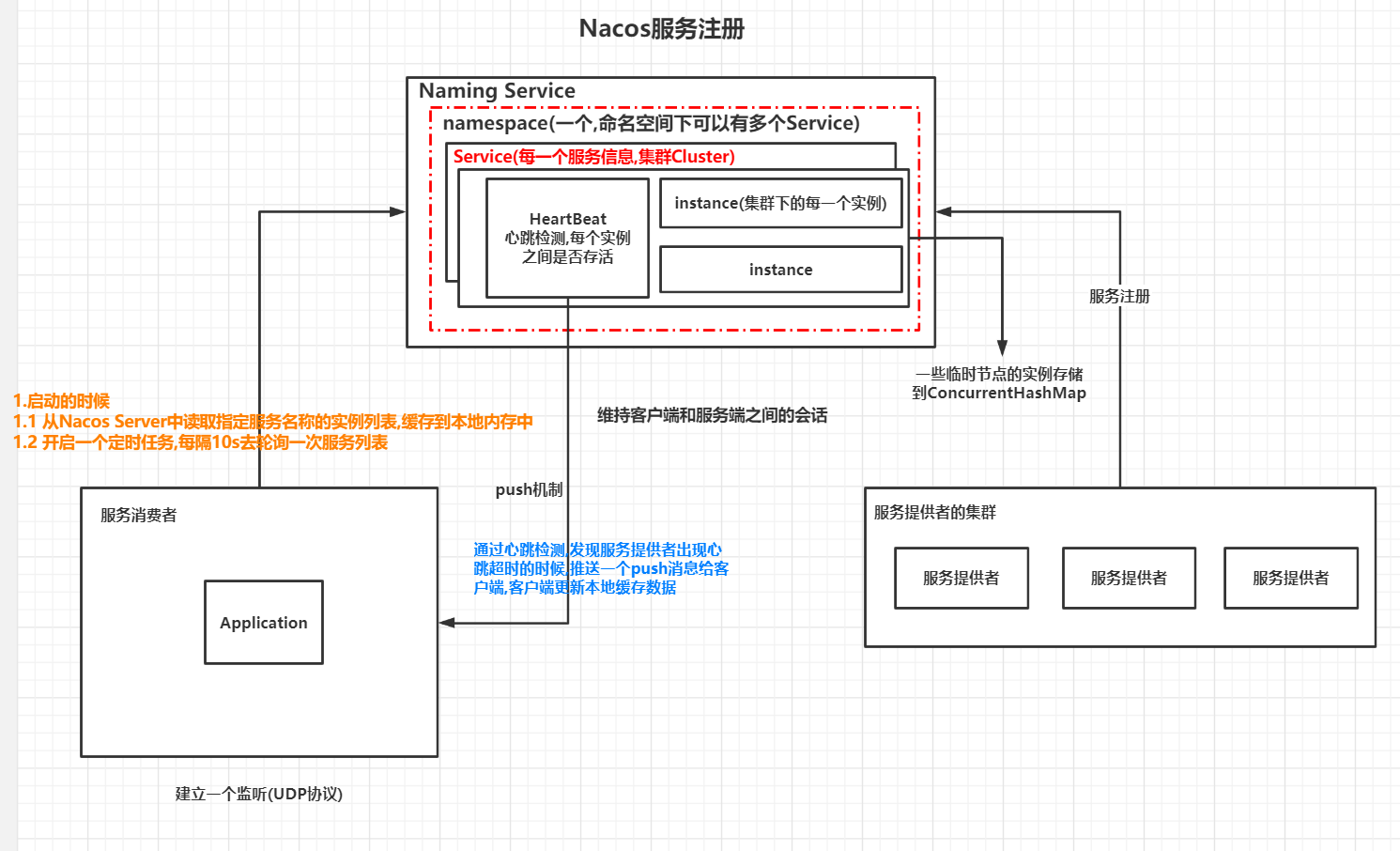

Nacos的实现原理图

Nacos的源码分析

Nacos客户端注册的流程

Dubbo服务注册的流程有两个，一个是和之前分析Eureka源码时的路径一样（参考Eureka源码分析）

另一个是基于Dubbo本身提供的自动装配机制，而在基于Dubbo服务发布的过程中，是走的事件监听机制，在 DubboServiceRegistrationNonWebApplicationAutoConfiguration 这个类中，这个类会监听 ApplicationStartedEvent 事件，这个事件是spring boot在2.0新增的，就是当spring boot应用启动完成之后会发布这个事件。而此时监听到这个事件之后，会触发注册的动作。

Spring Cloud Nacos 继承Dubbo

DubboServiceRegistrationNonWebApplicationAutoConfiguration

//监听ApplicationStartedEvent事件，进行服务的注册
@EventListener(ApplicationStartedEvent.class)
public void onApplicationStarted() {
    setServerPort();
    register();
}

private void register() {
    if (registered) {
        return;
    }
    serviceRegistry.register(registration);
    registered = true;
}

this.serviceRegistry。是一个注入的实例： NacosServiceRegistry

NacosServiceRegistry.register

@Override
public void register(Registration registration) {

    if (StringUtils.isEmpty(registration.getServiceId())) {
        log.warn("No service to register for nacos client...");
        return;
    }
	//serviceId对应当前应用的application.name
    String serviceId = registration.getServiceId();
    //group表示nacos上的分组配置
    String group = nacosDiscoveryProperties.getGroup();
    //instance表示服务实例信息
    Instance instance = getNacosInstanceFromRegistration(registration);

    try {
        namingService.registerInstance(serviceId, group, instance);
        log.info("nacos registry, {} {} {}:{} register finished", group, serviceId,
                 instance.getIp(), instance.getPort());
    }
    catch (Exception e) {
        log.error("nacos registry, {} register failed...{},", serviceId,
                  registration.toString(), e);
        // rethrow a RuntimeException if the registration is failed.
        // issue : https://github.com/alibaba/spring-cloud-alibaba/issues/1132
        rethrowRuntimeException(e);
    }
}

NacosNamingService.registerInstance

开始注册实例，主要做两个动作

如果当前注册的是临时节点，则构建心跳信息，通过beat反应堆来构建心跳任务
调用registerService发起服务注册

@Override
public void registerInstance(String serviceName, String groupName, Instance instance) throws NacosException {
	//是否是临时节点，如果是临时节点，则构建心跳信息
    if (instance.isEphemeral()) {
        BeatInfo beatInfo = new BeatInfo();
        beatInfo.setServiceName(NamingUtils.getGroupedName(serviceName, groupName));
        beatInfo.setIp(instance.getIp());
        beatInfo.setPort(instance.getPort());
        beatInfo.setCluster(instance.getClusterName());
        beatInfo.setWeight(instance.getWeight());
        beatInfo.setMetadata(instance.getMetadata());
        beatInfo.setScheduled(false);
        beatInfo.setPeriod(instance.getInstanceHeartBeatInterval());
		//beatReactor， 添加心跳信息进行处理
        beatReactor.addBeatInfo(NamingUtils.getGroupedName(serviceName, groupName), beatInfo);
    }

    serverProxy.registerService(NamingUtils.getGroupedName(serviceName, groupName), groupName, instance);
}

NamingProxy.registerService

public void registerService(String serviceName, String groupName, Instance instance) throws NacosException {

    NAMING_LOGGER.info("[REGISTER-SERVICE] {} registering service {} with instance: {}",
                       namespaceId, serviceName, instance);

    final Map<String, String> params = new HashMap<String, String>(9);
    params.put(CommonParams.NAMESPACE_ID, namespaceId);
    params.put(CommonParams.SERVICE_NAME, serviceName);
    params.put(CommonParams.GROUP_NAME, groupName);
    params.put(CommonParams.CLUSTER_NAME, instance.getClusterName());
    params.put("ip", instance.getIp());
    params.put("port", String.valueOf(instance.getPort()));
    params.put("weight", String.valueOf(instance.getWeight()));
    params.put("enable", String.valueOf(instance.isEnabled()));
    params.put("healthy", String.valueOf(instance.isHealthy()));
    params.put("ephemeral", String.valueOf(instance.isEphemeral()));
    params.put("metadata", JSON.toJSONString(instance.getMetadata()));

    reqAPI(UtilAndComs.NACOS_URL_INSTANCE, params, HttpMethod.POST);

}

NamingProxy.reqAPI

public String reqAPI(String api, Map<String, String> params, String body, List<String> servers, String method) throws NacosException {

    params.put(CommonParams.NAMESPACE_ID, getNamespaceId());

    if (CollectionUtils.isEmpty(servers) && StringUtils.isEmpty(nacosDomain)) {
        throw new NacosException(NacosException.INVALID_PARAM, "no server available");
    }

    NacosException exception = new NacosException();
    //服务列表不为空的话,对应application.properties中配置的spring.cloud.nacos.discovery.server-addr的Nacos注册中心列表
    if (servers != null && !servers.isEmpty()) {

        Random random = new Random(System.currentTimeMillis());
        int index = random.nextInt(servers.size());
		//随机选取一个服务进行注册
        for (int i = 0; i < servers.size(); i++) {
            String server = servers.get(index);
            try {
                //调用指定服务
                return callServer(api, params, body, server, method);
            } catch (NacosException e) {
                exception = e;
                if (NAMING_LOGGER.isDebugEnabled()) {
                    NAMING_LOGGER.debug("request {} failed.", server, e);
                }
            }
            //轮询
            index = (index + 1) % servers.size();
        }
    }

    if (StringUtils.isNotBlank(nacosDomain)) {
        for (int i = 0; i < UtilAndComs.REQUEST_DOMAIN_RETRY_COUNT; i++) {
            try {
                return callServer(api, params, body, nacosDomain, method);
            } catch (NacosException e) {
                exception = e;
                if (NAMING_LOGGER.isDebugEnabled()) {
                    NAMING_LOGGER.debug("request {} failed.", nacosDomain, e);
                }
            }
        }
    }

    NAMING_LOGGER.error("request: {} failed, servers: {}, code: {}, msg: {}",
                        api, servers, exception.getErrCode(), exception.getErrMsg());

    throw new NacosException(exception.getErrCode(), "failed to req API:/api/" + api + " after all servers(" + servers + ") tried: "
                             + exception.getMessage());

}

NamingProxy.callServer

public String callServer(String api, Map<String, String> params, String body, String curServer, String method)
    throws NacosException {
    long start = System.currentTimeMillis();
    long end = 0;
    //添加签名信息，
    injectSecurityInfo(params);
    //添加头信息
    List<String> headers = builderHeaders();

    String url;
    if (curServer.startsWith(UtilAndComs.HTTPS) || curServer.startsWith(UtilAndComs.HTTP)) {
        url = curServer + api;
    } else {
        if (!curServer.contains(UtilAndComs.SERVER_ADDR_IP_SPLITER)) {
            curServer = curServer + UtilAndComs.SERVER_ADDR_IP_SPLITER + serverPort;
        }
        url = HttpClient.getPrefix() + curServer + api;
    }
	//发起HttpClient进行注册
    HttpClient.HttpResult result = HttpClient.request(url, headers, params, body, UtilAndComs.ENCODING, method);
    end = System.currentTimeMillis();
	//上报Metrice进行监控
    MetricsMonitor.getNamingRequestMonitor(method, url, String.valueOf(result.code))
        .observe(end - start);

    if (HttpURLConnection.HTTP_OK == result.code) {
        return result.content;
    }

    if (HttpURLConnection.HTTP_NOT_MODIFIED == result.code) {
        return StringUtils.EMPTY;
    }

    throw new NacosException(result.code, result.content);
}

HttpClient.request

public static HttpResult request(String url, List<String> headers, Map<String, String> paramValues, String body, String encoding, String method) {
    HttpURLConnection conn = null;
    try {
        String encodedContent = encodingParams(paramValues, encoding);
        url += (StringUtils.isEmpty(encodedContent)) ? "" : ("?" + encodedContent);

        conn = (HttpURLConnection) new URL(url).openConnection();

        setHeaders(conn, headers, encoding);
        conn.setConnectTimeout(CON_TIME_OUT_MILLIS);
        conn.setReadTimeout(TIME_OUT_MILLIS);
        conn.setRequestMethod(method);
        conn.setDoOutput(true);
        if (StringUtils.isNotBlank(body)) {
            byte[] b = body.getBytes();
            conn.setRequestProperty("Content-Length", String.valueOf(b.length));
            conn.getOutputStream().write(b, 0, b.length);
            conn.getOutputStream().flush();
            conn.getOutputStream().close();
        }
        conn.connect();
        if (NAMING_LOGGER.isDebugEnabled()) {
            NAMING_LOGGER.debug("Request from server: " + url);
        }
        return getResult(conn);
    } catch (Exception e) {
        try {
            if (conn != null) {
                NAMING_LOGGER.warn("failed to request " + conn.getURL() + " from "
                                   + InetAddress.getByName(conn.getURL().getHost()).getHostAddress());
            }
        } catch (Exception e1) {
            NAMING_LOGGER.error("[NA] failed to request ", e1);
            //ignore
        }

        NAMING_LOGGER.error("[NA] failed to request ", e);

        return new HttpResult(500, e.toString(), Collections.<String, String>emptyMap());
    } finally {
        IoUtils.closeQuietly(conn);
    }
}

Nacos服务端的注册流程

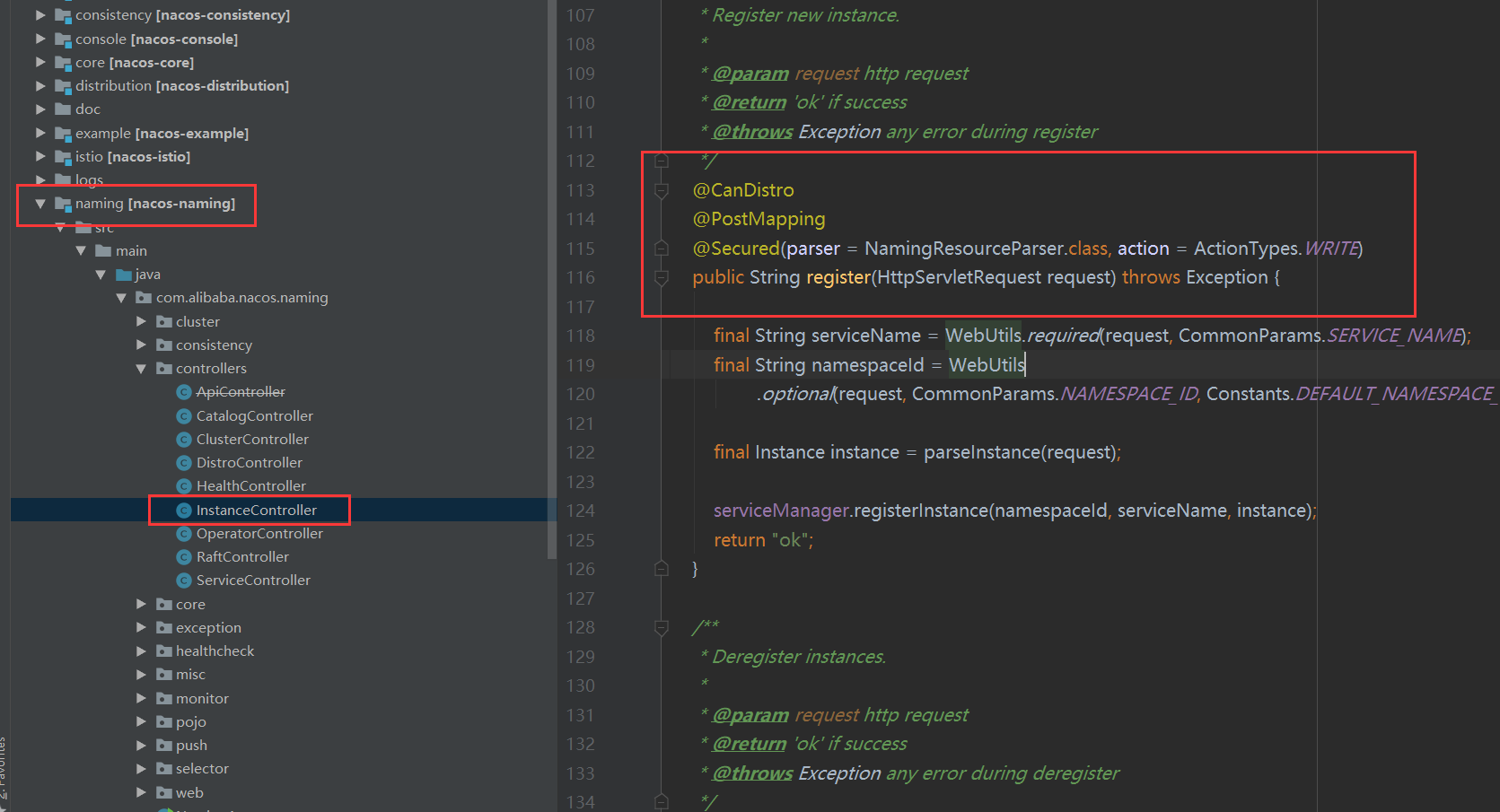

服务端提供了一个InstanceController类，在这个类中提供了服务注册相关的API，而服务端发起初测时，调用的接口是： [post]: /nacos/v1/ns/instance

InstanceController.register

@CanDistro
@PostMapping
@Secured(parser = NamingResourceParser.class, action = ActionTypes.WRITE)
public String register(HttpServletRequest request) throws Exception {
	//serviceName表示客户端服务名称
    final String serviceName = WebUtils.required(request, CommonParams.SERVICE_NAME);
    //namespaceId表示nacos的namespace
    final String namespaceId = WebUtils
        .optional(request, CommonParams.NAMESPACE_ID, Constants.DEFAULT_NAMESPACE_ID);
    // //从请求中解析出instance实例
    final Instance instance = parseInstance(request);

    serviceManager.registerInstance(namespaceId, serviceName, instance);
    return "ok";
}

ServiceManager.registerInstance

public void registerInstance(String namespaceId, String serviceName, Instance instance) throws NacosException {
	//创建一个空服务，在Nacos控制台服务列表展示的服务信息，实际上是初始化一个serviceMap，它是一个ConcurrentHashMap集合
    createEmptyService(namespaceId, serviceName, instance.isEphemeral());
	//从serviceMap中，根据namespaceId和serviceName得到一个服务对象
    Service service = getService(namespaceId, serviceName);

    if (service == null) {
        throw new NacosException(NacosException.INVALID_PARAM,
                                 "service not found, namespace: " + namespaceId + ", service: " + serviceName);
    }
	//调用addInstance创建一个服务实例
    addInstance(namespaceId, serviceName, instance.isEphemeral(), instance);
}

ServiceManager.createServiceIfAbsent

public void createServiceIfAbsent(String namespaceId, String serviceName, boolean local, Cluster cluster)
    throws NacosException {
    //根据namespaceId,serviceName(group:serviceName)确定一个服务
    Service service = getService(namespaceId, serviceName);
    //service如果为空,说明是第一次创建,构建一个新的Service
    if (service == null) {

        Loggers.SRV_LOG.info("creating empty service {}:{}", namespaceId, serviceName);
        service = new Service();
        service.setName(serviceName);
        service.setNamespaceId(namespaceId);
        service.setGroupName(NamingUtils.getGroupName(serviceName));
        // now validate the service. if failed, exception will be thrown
        service.setLastModifiedMillis(System.currentTimeMillis());
        service.recalculateChecksum();
        if (cluster != null) {
            cluster.setService(service);
            service.getClusterMap().put(cluster.getName(), cluster);
        }
        service.validate();
		//存储到Map中
        putServiceAndInit(service);
        if (!local) {
            addOrReplaceService(service);
        }
    }
}

ServiceManager.getService

存储的结构

key namespaceId value Map<String, Service>

key group::serviceName value: Service

Service

List instances;

/**
* Map(namespace, Map(group::serviceName, Service)).
*/
private final Map<String, Map<String, Service>> serviceMap = new ConcurrentHashMap<>();

public Service getService(String namespaceId, String serviceName) {
    if (serviceMap.get(namespaceId) == null) {
        return null;
    }
    return chooseServiceMap(namespaceId).get(serviceName);
}

ServiceManager.putServiceAndInit

private void putServiceAndInit(Service service) throws NacosException {
    //将注册的服务添加到Map中
    putService(service);
    //初始化心跳检测机制，检测Server下不同的Insatance之间的心跳
    service.init();
    //实现数据一致性监听，ephemeral=true表示采用raft协议，false表示采用Distro
    consistencyService
        .listen(KeyBuilder.buildInstanceListKey(service.getNamespaceId(), service.getName(), true), service);
    consistencyService
        .listen(KeyBuilder.buildInstanceListKey(service.getNamespaceId(), service.getName(), false), service);
    Loggers.SRV_LOG.info("[NEW-SERVICE] {}", service.toJson());
}

ServiceManager.putService

将新注册的实例添加到同一个namespaceId下的map中

public void putService(Service service) {
    if (!serviceMap.containsKey(service.getNamespaceId())) {
        synchronized (putServiceLock) {
            if (!serviceMap.containsKey(service.getNamespaceId())) {
                serviceMap.put(service.getNamespaceId(), new ConcurrentHashMap<>(16));
            }
        }
    }
    serviceMap.get(service.getNamespaceId()).put(service.getName(), service);
}

ServiceManager.addInstance

public void addInstance(String namespaceId, String serviceName, boolean ephemeral, Instance... ips)
    throws NacosException {

    String key = KeyBuilder.buildInstanceListKey(namespaceId, serviceName, ephemeral);
	//Service{name='DEFAULT_GROUP@@fireweed-manager', protectThreshold=0.0, appName='null', groupName='DEFAULT_GROUP', metadata={}}
    Service service = getService(namespaceId, serviceName);

    synchronized (service) {
		//把服务实例添加到集合中，然后基于一致性协议进行数据的同步。
        List<Instance> instanceList = addIpAddresses(service, ephemeral, ips);

        Instances instances = new Instances();
        instances.setInstanceList(instanceList);

        consistencyService.put(key, instances);
    }
}

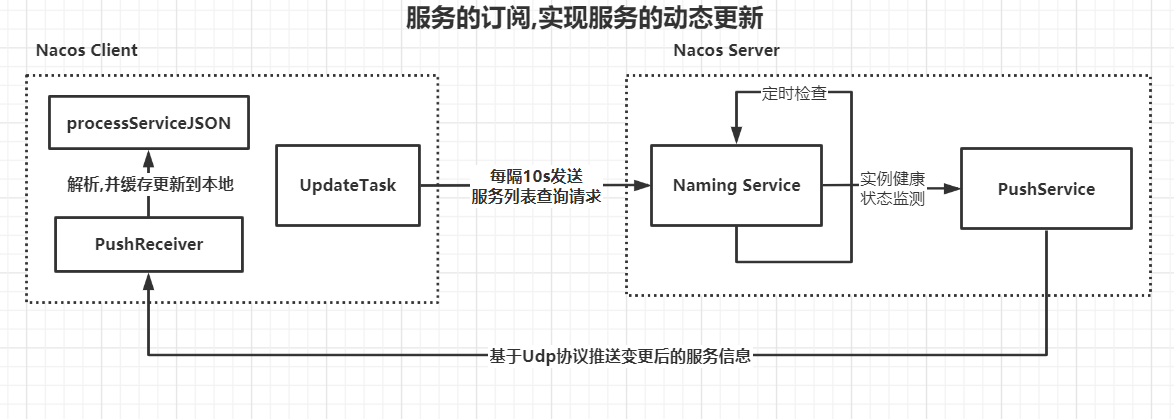

消费者的服务查询

启动的时候主要做两件事情

从Nacos Server中读取指定服务名称的实例列表,缓存到本地内存中

开启一个定时任务,每隔10s去轮询一次服务列表

服务注册成功之后，消费者就可以从nacos server中获取到服务提供者的地址，然后进行服务的调用。在服务消费中，有一个核心的类 NacosDiscoveryClient 来负责和nacos交互，去获得服务提供者的地址信息。前置的具体的流程就不在这里复述了，之前在讲dubbo源码的时候已经分析过服务的订阅过程。 NacosDiscoveryClient 中提供了一个 getInstances 方法用来根据服务提供者名称获取服务提供者的 url地址的方法.

1.客户端启动获取服务列表(从Nacos Server中读取指定服务名称的实例列表,缓存到本地内存中)

NacosDiscoveryClient.getInstances

public List<ServiceInstance> getInstances(String serviceId) {
    try {
        List<Instance> instances = this.discoveryProperties.namingServiceInstance().selectInstances(serviceId, true);
        return hostToServiceInstanceList(instances, serviceId);
    } catch (Exception var3) {
        throw new RuntimeException("Can not get hosts from nacos server. serviceId: " + serviceId, var3);
    }
}

调用NamingService，根据serviceId、group获得服务实例列表。然后把instance转化为ServiceInstance对象

NacosNamingService.selectInstances

selectInstances首先从hostReactor获取serviceInfo，然后再从serviceInfo.getHosts()剔除非healty、非enabled、weight小于等于0的instance再返回；如果subscribe为true，则执行 hostReactor.getServiceInfo获取serviceInfo，否则执行 hostReactor.getServiceInfoDirectlyFromServer获取serviceInfo

@Override
public List<Instance> selectInstances(String serviceName, String groupName, List<String> clusters, boolean healthy, boolean subscribe) throws NacosException {

    ServiceInfo serviceInfo;
    //是否需要订阅，由于我们要感知服务端的变化，肯定需要进行订阅
    if (subscribe) {
        //hostReactor主机反应堆,这里建立订阅机制，主要是两件事：①.push机制  ②.每隔10s客户端的短轮询
        serviceInfo = hostReactor.getServiceInfo(NamingUtils.getGroupedName(serviceName, groupName), StringUtils.join(clusters, ","));
    } else {
        serviceInfo = hostReactor.getServiceInfoDirectlyFromServer(NamingUtils.getGroupedName(serviceName, groupName), StringUtils.join(clusters, ","));
    }
    return selectInstances(serviceInfo, healthy);
}

HostReactor.getServiceInfo

有两个逻辑，分别是

updateServiceNow，立马从Nacos server中去加载服务地址信息
scheduleUpdateIfAbsent 开启定时调度，每1s去查询一次服务地址

public ServiceInfo getServiceInfo(final String serviceName, final String clusters) {

    NAMING_LOGGER.debug("failover-mode: " + failoverReactor.isFailoverSwitch());
    //拼接服务名称+集群名称（默认为空）
    String key = ServiceInfo.getKey(serviceName, clusters);
    if (failoverReactor.isFailoverSwitch()) {
        return failoverReactor.getService(key);
    }
    //根据ServiceName,cluster先从本地缓存中获取
    ServiceInfo serviceObj = getServiceInfo0(serviceName, clusters);
	//如果为null，则创建一个新的然后放入serviceInfoMap，同时放入updatingMap，执行 updateServiceNow，再从updatingMap移除；
    if (null == serviceObj) {
        //构建一个ServiceInfo
        serviceObj = new ServiceInfo(serviceName, clusters);
		//存储到serviceInfoMap本地缓存中
        serviceInfoMap.put(serviceObj.getKey(), serviceObj);

        updatingMap.put(serviceName, new Object());
        //调用Nacos服务端获取实例信息
        updateServiceNow(serviceName, clusters);
        updatingMap.remove(serviceName);

    } else if (updatingMap.containsKey(serviceName)) {
		//如果从serviceInfoMap找出来的serviceObj在updatingMap中则等待UPDATE_HOLD_INTERVAL
        if (UPDATE_HOLD_INTERVAL > 0) {
            // hold a moment waiting for update finish
            synchronized (serviceObj) {
                try {
                    serviceObj.wait(UPDATE_HOLD_INTERVAL);
                } catch (InterruptedException e) {
                    NAMING_LOGGER.error("[getServiceInfo] serviceName:" + serviceName + ", clusters:" + clusters, e);
                }
            }
        }
    }
	//如果本地缓存中存在，则通过scheduleUpdateIfAbsent开启定时任务，再从serviceInfoMap取出 serviceInfo
    scheduleUpdateIfAbsent(serviceName, clusters);

    return serviceInfoMap.get(serviceObj.getKey());
}

HostReactor.getServiceInfo0

private Map<String, ServiceInfo> serviceInfoMap;

private ServiceInfo getServiceInfo0(String serviceName, String clusters) {
	//构建key
    String key = ServiceInfo.getKey(serviceName, clusters);
	//根据key从本地缓存中获取
    return serviceInfoMap.get(key);
}

HostReactor.updateServiceNow

private NamingProxy serverProxy;

public void updateServiceNow(String serviceName, String clusters) {
    ServiceInfo oldService = getServiceInfo0(serviceName, clusters);
    try {
		//调用NamingProxy远程获取地址列表，这里的pushReceiver.getUDPPort()在查询列表的列表的时候会传递UDP端口，当服务端有地址列表变化的时候，基于此udp端口，推送push给客户端，客户端监听此端口，更新本地缓存
        String result = serverProxy.queryList(serviceName, clusters, pushReceiver.getUDPPort(), false);

        if (StringUtils.isNotEmpty(result)) {
            //解析获取到结果，保存到本地缓存中
            processServiceJSON(result);
        }
    } catch (Exception e) {
        NAMING_LOGGER.error("[NA] failed to update serviceName: " + serviceName, e);
    } finally {
        if (oldService != null) {
            synchronized (oldService) {
                oldService.notifyAll();
            }
        }
    }
}

HostReactor.processServiceJSON

public ServiceInfo processServiceJSON(String json) {
    //解析
    ServiceInfo serviceInfo = JSON.parseObject(json, ServiceInfo.class);
    //根据key从本地缓存中获取ServiceInfo
    ServiceInfo oldService = serviceInfoMap.get(serviceInfo.getKey());
    if (serviceInfo.getHosts() == null || !serviceInfo.validate()) {
        //empty or error push, just ignore
        return oldService;
    }

    boolean changed = false;
	//oldService不为null,更新本地缓存
    if (oldService != null) {

        if (oldService.getLastRefTime() > serviceInfo.getLastRefTime()) {
            NAMING_LOGGER.warn("out of date data received, old-t: " + oldService.getLastRefTime()
                + ", new-t: " + serviceInfo.getLastRefTime());
        }

        serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);

        Map<String, Instance> oldHostMap = new HashMap<String, Instance>(oldService.getHosts().size());
        for (Instance host : oldService.getHosts()) {
            oldHostMap.put(host.toInetAddr(), host);
        }

        Map<String, Instance> newHostMap = new HashMap<String, Instance>(serviceInfo.getHosts().size());
        for (Instance host : serviceInfo.getHosts()) {
            newHostMap.put(host.toInetAddr(), host);
        }

        Set<Instance> modHosts = new HashSet<Instance>();
        Set<Instance> newHosts = new HashSet<Instance>();
        Set<Instance> remvHosts = new HashSet<Instance>();

        List<Map.Entry<String, Instance>> newServiceHosts = new ArrayList<Map.Entry<String, Instance>>(
            newHostMap.entrySet());
        for (Map.Entry<String, Instance> entry : newServiceHosts) {
            Instance host = entry.getValue();
            String key = entry.getKey();
            if (oldHostMap.containsKey(key) && !StringUtils.equals(host.toString(),
                oldHostMap.get(key).toString())) {
                modHosts.add(host);
                continue;
            }

            if (!oldHostMap.containsKey(key)) {
                newHosts.add(host);
            }
        }

        for (Map.Entry<String, Instance> entry : oldHostMap.entrySet()) {
            Instance host = entry.getValue();
            String key = entry.getKey();
            if (newHostMap.containsKey(key)) {
                continue;
            }

            if (!newHostMap.containsKey(key)) {
                remvHosts.add(host);
            }

        }

        if (newHosts.size() > 0) {
            changed = true;
            NAMING_LOGGER.info("new ips(" + newHosts.size() + ") service: "
                + serviceInfo.getKey() + " -> " + JSON.toJSONString(newHosts));
        }

        if (remvHosts.size() > 0) {
            changed = true;
            NAMING_LOGGER.info("removed ips(" + remvHosts.size() + ") service: "
                + serviceInfo.getKey() + " -> " + JSON.toJSONString(remvHosts));
        }

        if (modHosts.size() > 0) {
            changed = true;
            NAMING_LOGGER.info("modified ips(" + modHosts.size() + ") service: "
                + serviceInfo.getKey() + " -> " + JSON.toJSONString(modHosts));
        }

        serviceInfo.setJsonFromServer(json);

        if (newHosts.size() > 0 || remvHosts.size() > 0 || modHosts.size() > 0) {
            eventDispatcher.serviceChanged(serviceInfo);
            DiskCache.write(serviceInfo, cacheDir);
        }

    } else {
        //直接缓存
        changed = true;
        NAMING_LOGGER.info("init new ips(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() + " -> " + JSON
            .toJSONString(serviceInfo.getHosts()));
        serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);
        eventDispatcher.serviceChanged(serviceInfo);
        serviceInfo.setJsonFromServer(json);
        DiskCache.write(serviceInfo, cacheDir);
    }

    MetricsMonitor.getServiceInfoMapSizeMonitor().set(serviceInfoMap.size());

    if (changed) {
        NAMING_LOGGER.info("current ips:(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() +
            " -> " + JSON.toJSONString(serviceInfo.getHosts()));
    }

    return serviceInfo;
}

NamingProxy.queryList

public String queryList(String serviceName, String clusters, int udpPort, boolean healthyOnly)
    throws NacosException {

    final Map<String, String> params = new HashMap<String, String>(8);
    params.put(CommonParams.NAMESPACE_ID, namespaceId);
    params.put(CommonParams.SERVICE_NAME, serviceName);
    params.put("clusters", clusters);
    params.put("udpPort", String.valueOf(udpPort));
    params.put("clientIP", NetUtils.localIP());
    params.put("healthyOnly", String.valueOf(healthyOnly));

    return reqAPI(UtilAndComs.NACOS_URL_BASE + "/instance/list", params, HttpMethod.GET);
}

服务端处理查询列表请求

InstanceController.list

@GetMapping("/list")
@Secured(parser = NamingResourceParser.class, action = ActionTypes.READ)
public ObjectNode list(HttpServletRequest request) throws Exception {
	//获取namespaceId
    String namespaceId = WebUtils.optional(request, CommonParams.NAMESPACE_ID, Constants.DEFAULT_NAMESPACE_ID);
    //获取serviceName
    String serviceName = WebUtils.required(request, CommonParams.SERVICE_NAME);
    String agent = WebUtils.getUserAgent(request);
    //获取cluster集群名称
    String clusters = WebUtils.optional(request, "clusters", StringUtils.EMPTY);
    String clientIP = WebUtils.optional(request, "clientIP", StringUtils.EMPTY);
    //获取udpPort
    int udpPort = Integer.parseInt(WebUtils.optional(request, "udpPort", "0"));
    String env = WebUtils.optional(request, "env", StringUtils.EMPTY);
    //获取是否开启检测（例如Eureka的自我保护机制）
    boolean isCheck = Boolean.parseBoolean(WebUtils.optional(request, "isCheck", "false"));

    String app = WebUtils.optional(request, "app", StringUtils.EMPTY);

    String tenant = WebUtils.optional(request, "tid", StringUtils.EMPTY);
	//获取是否健康状态
    boolean healthyOnly = Boolean.parseBoolean(WebUtils.optional(request, "healthyOnly", "false"));

    return doSrvIpxt(namespaceId, serviceName, agent, clusters, clientIP, udpPort, env, isCheck, app, tenant,
                     healthyOnly);
}

InstanceController.doSrvIpxt

public ObjectNode doSrvIpxt(String namespaceId, String serviceName, String agent, String clusters, String clientIP,
                            int udpPort, String env, boolean isCheck, String app, String tid, boolean healthyOnly) throws Exception {

    ClientInfo clientInfo = new ClientInfo(agent);
    ObjectNode result = JacksonUtils.createEmptyJsonNode();
    //根据namespaceId,serviceName获取服务Service
    Service service = serviceManager.getService(namespaceId, serviceName);
	//如果不存在，构建一个空集合返回
    if (service == null) {
        if (Loggers.SRV_LOG.isDebugEnabled()) {
            Loggers.SRV_LOG.debug("no instance to serve for service: {}", serviceName);
        }
        result.put("name", serviceName);
        result.put("clusters", clusters);
        result.replace("hosts", JacksonUtils.createEmptyArrayNode());
        return result;
    }

    checkIfDisabled(service);

    long cacheMillis = switchDomain.getDefaultCacheMillis();

    //判断updPort端口是否大于0，并且开启自动推送
    // now try to enable the push
    try {
        if (udpPort > 0 && pushService.canEnablePush(agent)) {
			//将客户端的信息添加到PushaService,专门用来当服务端的地址列表发送变化的时候通过upd协议推送给客户端
            pushService
                .addClient(namespaceId, serviceName, clusters, agent, new InetSocketAddress(clientIP, udpPort),
                           pushDataSource, tid, app);
            cacheMillis = switchDomain.getPushCacheMillis(serviceName);
        }
    } catch (Exception e) {
        Loggers.SRV_LOG
            .error("[NACOS-API] failed to added push client {}, {}:{}", clientInfo, clientIP, udpPort, e);
        cacheMillis = switchDomain.getDefaultCacheMillis();
    }

    List<Instance> srvedIPs;

    srvedIPs = service.srvIPs(Arrays.asList(StringUtils.split(clusters, ",")));

    // filter ips using selector:
    if (service.getSelector() != null && StringUtils.isNotBlank(clientIP)) {
        srvedIPs = service.getSelector().select(clientIP, srvedIPs);
    }

    if (CollectionUtils.isEmpty(srvedIPs)) {

        if (Loggers.SRV_LOG.isDebugEnabled()) {
            Loggers.SRV_LOG.debug("no instance to serve for service: {}", serviceName);
        }

        if (clientInfo.type == ClientInfo.ClientType.JAVA
            && clientInfo.version.compareTo(VersionUtil.parseVersion("1.0.0")) >= 0) {
            result.put("dom", serviceName);
        } else {
            result.put("dom", NamingUtils.getServiceName(serviceName));
        }

        result.put("hosts", JacksonUtils.createEmptyArrayNode());
        result.put("name", serviceName);
        result.put("cacheMillis", cacheMillis);
        result.put("lastRefTime", System.currentTimeMillis());
        result.put("checksum", service.getChecksum());
        result.put("useSpecifiedURL", false);
        result.put("clusters", clusters);
        result.put("env", env);
        result.put("metadata", JacksonUtils.transferToJsonNode(service.getMetadata()));
        return result;
    }

    Map<Boolean, List<Instance>> ipMap = new HashMap<>(2);
    //TRUE：实例时正常的状态，FALSE:不正常的状态
    ipMap.put(Boolean.TRUE, new ArrayList<>());
    ipMap.put(Boolean.FALSE, new ArrayList<>());
	//获取服务的健康状态，添加到ipMap中
    for (Instance ip : srvedIPs) {
        ipMap.get(ip.isHealthy()).add(ip);
    }
	//判断是否开启检查
    if (isCheck) {
        result.put("reachProtectThreshold", false);
    }

    double threshold = service.getProtectThreshold();
	//判断是否需要开启自我保护机制，正常的服务总数/总的服务数<= 阈值，
    if ((float) ipMap.get(Boolean.TRUE).size() / srvedIPs.size() <= threshold) {

        Loggers.SRV_LOG.warn("protect threshold reached, return all ips, service: {}", serviceName);
        if (isCheck) {
            result.put("reachProtectThreshold", true);
        }
        //将健康和不健康的实例全部添加到ipMap中返回
        ipMap.get(Boolean.TRUE).addAll(ipMap.get(Boolean.FALSE));
        ipMap.get(Boolean.FALSE).clear();
    }

    if (isCheck) {
        result.put("protectThreshold", service.getProtectThreshold());
        result.put("reachLocalSiteCallThreshold", false);

        return JacksonUtils.createEmptyJsonNode();
    }

    ArrayNode hosts = JacksonUtils.createEmptyArrayNode();

    for (Map.Entry<Boolean, List<Instance>> entry : ipMap.entrySet()) {
        List<Instance> ips = entry.getValue();

        if (healthyOnly && !entry.getKey()) {
            continue;
        }

        for (Instance instance : ips) {

            // remove disabled instance:
            if (!instance.isEnabled()) {
                continue;
            }

            ObjectNode ipObj = JacksonUtils.createEmptyJsonNode();

            ipObj.put("ip", instance.getIp());
            ipObj.put("port", instance.getPort());
            // deprecated since nacos 1.0.0:
            ipObj.put("valid", entry.getKey());
            ipObj.put("healthy", entry.getKey());
            ipObj.put("marked", instance.isMarked());
            ipObj.put("instanceId", instance.getInstanceId());
            ipObj.put("metadata", JacksonUtils.transferToJsonNode(instance.getMetadata()));
            ipObj.put("enabled", instance.isEnabled());
            ipObj.put("weight", instance.getWeight());
            ipObj.put("clusterName", instance.getClusterName());
            if (clientInfo.type == ClientInfo.ClientType.JAVA
                && clientInfo.version.compareTo(VersionUtil.parseVersion("1.0.0")) >= 0) {
                ipObj.put("serviceName", instance.getServiceName());
            } else {
                ipObj.put("serviceName", NamingUtils.getServiceName(instance.getServiceName()));
            }

            ipObj.put("ephemeral", instance.isEphemeral());
            hosts.add(ipObj);

        }
    }
	//组装数据返回
    result.replace("hosts", hosts);
    if (clientInfo.type == ClientInfo.ClientType.JAVA
        && clientInfo.version.compareTo(VersionUtil.parseVersion("1.0.0")) >= 0) {
        result.put("dom", serviceName);
    } else {
        result.put("dom", NamingUtils.getServiceName(serviceName));
    }
    result.put("name", serviceName);
    result.put("cacheMillis", cacheMillis);
    result.put("lastRefTime", System.currentTimeMillis());
    result.put("checksum", service.getChecksum());
    result.put("useSpecifiedURL", false);
    result.put("clusters", clusters);
    result.put("env", env);
    result.replace("metadata", JacksonUtils.transferToJsonNode(service.getMetadata()));
    return result;
}

服务的订阅，实现服务的动态更新

2.开启一个定时任务,每隔10s去轮询一次服务列表

NacosNamingService.init

public NacosNamingService(Properties properties) {
    init(properties);
}

private void init(Properties properties) {
    namespace = InitUtils.initNamespaceForNaming(properties);
    initServerAddr(properties);
    InitUtils.initWebRootContext();
    initCacheDir();
    initLogName(properties);

    eventDispatcher = new EventDispatcher();
    serverProxy = new NamingProxy(namespace, endpoint, serverList, properties);
    //心跳检查BeatReactor
    beatReactor = new BeatReactor(serverProxy, initClientBeatThreadCount(properties));
    //定时轮询检查HostReactor
    hostReactor = new HostReactor(eventDispatcher, serverProxy, cacheDir, isLoadCacheAtStart(properties),
                                  initPollingThreadCount(properties));
}

HostReactor构造方法

public HostReactor(EventDispatcher eventDispatcher, NamingProxy serverProxy, String cacheDir,
                   boolean loadCacheAtStart, int pollingThreadCount) {
	//开启一个线程
    executor = new ScheduledThreadPoolExecutor(pollingThreadCount, new ThreadFactory() {
        @Override
        public Thread newThread(Runnable r) {
            Thread thread = new Thread(r);
            thread.setDaemon(true);
            thread.setName("com.alibaba.nacos.client.naming.updater");
            return thread;
        }
    });

    this.eventDispatcher = eventDispatcher;
    this.serverProxy = serverProxy;
    this.cacheDir = cacheDir;
    if (loadCacheAtStart) {
        this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(DiskCache.read(this.cacheDir));
    } else {
        this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(16);
    }

    this.updatingMap = new ConcurrentHashMap<String, Object>();
    this.failoverReactor = new FailoverReactor(this, cacheDir);
    //初始化PushReceiver，初始化一个服务监听的订阅
    this.pushReceiver = new PushReceiver(this);
}

PushReceiver构造方法

public PushReceiver(HostReactor hostReactor) {
    try {
        this.hostReactor = hostReactor;
        udpSocket = new DatagramSocket();
		//开启一个线程池，不断接受服务端传递过来的数据
        executorService = new ScheduledThreadPoolExecutor(1, new ThreadFactory() {
            @Override
            public Thread newThread(Runnable r) {
                Thread thread = new Thread(r);
                thread.setDaemon(true);
                thread.setName("com.alibaba.nacos.naming.push.receiver");
                return thread;
            }
        });
		//调用run方法
        executorService.execute(this);
    } catch (Exception e) {
        NAMING_LOGGER.error("[NA] init udp socket failed", e);
    }
}

@Override
public void run() {
    //通过while循环不断监听客户端Nacos Server传递过来的数据，实现一个Push的机制
    while (true) {
        try {
            // byte[] is initialized with 0 full filled by default
            byte[] buffer = new byte[UDP_MSS];
            DatagramPacket packet = new DatagramPacket(buffer, buffer.length);
			//初始化一个监听，不断接受客户端Nacos Server传递过来的数据
            udpSocket.receive(packet);

            String json = new String(IoUtils.tryDecompress(packet.getData()), "UTF-8").trim();
            NAMING_LOGGER.info("received push data: " + json + " from " + packet.getAddress().toString());

            PushPacket pushPacket = JSON.parseObject(json, PushPacket.class);
            String ack;
            if ("dom".equals(pushPacket.type) || "service".equals(pushPacket.type)) {
                hostReactor.processServiceJSON(pushPacket.data);

                // send ack to server
                ack = "{\"type\": \"push-ack\""
                    + ", \"lastRefTime\":\"" + pushPacket.lastRefTime
                    + "\", \"data\":" + "\"\"}";
            } else if ("dump".equals(pushPacket.type)) {
                // dump data to server
                ack = "{\"type\": \"dump-ack\""
                    + ", \"lastRefTime\": \"" + pushPacket.lastRefTime
                    + "\", \"data\":" + "\""
                    + StringUtils.escapeJavaScript(JSON.toJSONString(hostReactor.getServiceInfoMap()))
                    + "\"}";
            } else {
                // do nothing send ack only
                ack = "{\"type\": \"unknown-ack\""
                    + ", \"lastRefTime\":\"" + pushPacket.lastRefTime
                    + "\", \"data\":" + "\"\"}";
            }

            udpSocket.send(new DatagramPacket(ack.getBytes(Charset.forName("UTF-8")),
                                              ack.getBytes(Charset.forName("UTF-8")).length, packet.getSocketAddress()));
        } catch (Exception e) {
            NAMING_LOGGER.error("[NA] error while receiving push data", e);
        }
    }
}

HostReactor.updateServiceNow

在第一次启动的时候查看服务列表的时候，会将自己的ip以及upd端口传递给Nacso Server端，当Nacos Server端服务地址列表发生变化的时候，会基于此端口进行推送，从而能够让上面udpSocket.receive(packet)接收到地址列表的变化

NacosNamingService.getAllInstances--->HostReactor.getServiceInfo---->HostReactor.updateServiceNow

public void updateServiceNow(String serviceName, String clusters) {
        ServiceInfo oldService = getServiceInfo0(serviceName, clusters);
        try {

            String result = serverProxy.queryList(serviceName, clusters, pushReceiver.getUDPPort(), false);

            if (StringUtils.isNotEmpty(result)) {
                processServiceJSON(result);
            }
        } catch (Exception e) {
            NAMING_LOGGER.error("[NA] failed to update serviceName: " + serviceName, e);
        } finally {
            if (oldService != null) {
                synchronized (oldService) {
                    oldService.notifyAll();
                }
            }
        }
    }

NacosNamingService.getServiceInfo

public ServiceInfo getServiceInfo(final String serviceName, final String clusters) {

    NAMING_LOGGER.debug("failover-mode: " + failoverReactor.isFailoverSwitch());
    String key = ServiceInfo.getKey(serviceName, clusters);
    if (failoverReactor.isFailoverSwitch()) {
        return failoverReactor.getService(key);
    }

    ServiceInfo serviceObj = getServiceInfo0(serviceName, clusters);

    if (null == serviceObj) {
        serviceObj = new ServiceInfo(serviceName, clusters);

        serviceInfoMap.put(serviceObj.getKey(), serviceObj);

        updatingMap.put(serviceName, new Object());
        updateServiceNow(serviceName, clusters);
        updatingMap.remove(serviceName);

    } else if (updatingMap.containsKey(serviceName)) {

        if (UPDATE_HOLD_INTERVAL > 0) {
            // hold a moment waiting for update finish
            synchronized (serviceObj) {
                try {
                    serviceObj.wait(UPDATE_HOLD_INTERVAL);
                } catch (InterruptedException e) {
                    NAMING_LOGGER.error("[getServiceInfo] serviceName:" + serviceName + ", clusters:" + clusters, e);
                }
            }
        }
    }
	//开启一个定时任务，客户端每隔10s轮询一次，这个任务会在默认在1s之后开 始执行。而任务的具体实现是一个UpdateTask。
    scheduleUpdateIfAbsent(serviceName, clusters);

    return serviceInfoMap.get(serviceObj.getKey());
}

HostReactor.scheduleUpdateIfAbsent

private final Map<String, ScheduledFuture<?>> futureMap = new HashMap<String, ScheduledFuture<?>>();

public void scheduleUpdateIfAbsent(String serviceName, String clusters) {
    if (futureMap.get(ServiceInfo.getKey(serviceName, clusters)) != null) {
        return;
    }

    synchronized (futureMap) {
        if (futureMap.get(ServiceInfo.getKey(serviceName, clusters)) != null) {
            return;
        }
		//添加一个任务UpdateTask
        ScheduledFuture<?> future = addTask(new UpdateTask(serviceName, clusters));
        futureMap.put(ServiceInfo.getKey(serviceName, clusters), future);
    }
}

UpdateTask

public class UpdateTask implements Runnable {
    long lastRefTime = Long.MAX_VALUE;
    private String clusters;
    private String serviceName;

    public UpdateTask(String serviceName, String clusters) {
        this.serviceName = serviceName;
        this.clusters = clusters;
    }

    @Override
    public void run() {
        try {
            //先从本地缓存中获取服务信息
            ServiceInfo serviceObj = serviceInfoMap.get(ServiceInfo.getKey(serviceName, clusters));
			//如果为null,说明本地没有，需要从服务端获取
            if (serviceObj == null) {
                //调用updateServiceNow从服务端获取地址列表
                updateServiceNow(serviceName, clusters);
                //将这个定时任务重新开启，实现重复的轮询功能
                executor.schedule(this, DEFAULT_DELAY, TimeUnit.MILLISECONDS);
                return;
            }
			//判断服务是否已过期，当前服务的最后一次更新时间 <= 全局的最后一次更新
            if (serviceObj.getLastRefTime() <= lastRefTime) {
                //调用updateServiceNow从服务端获取地址列表，更新服务列表
                updateServiceNow(serviceName, clusters);
                serviceObj = serviceInfoMap.get(ServiceInfo.getKey(serviceName, clusters));
            } else {
                // if serviceName already updated by push, we should not override it
                // since the push data may be different from pull through force push
                //如果服务已经被基于push机制的情况下做了更新，那么我们不需要覆盖本地服务。
                //因为push过来的数据和pull数据不同，所以这里只是调用请求去刷新服务
                refreshOnly(serviceName, clusters);
            }
			 //更新最后一次刷新时间
            lastRefTime = serviceObj.getLastRefTime();
			 //如果没有实现订阅或者futureMap中不包含指定服务信息，则中断更新请求
            if (!eventDispatcher.isSubscribed(serviceName, clusters) &&
                !futureMap.containsKey(ServiceInfo.getKey(serviceName, clusters))) {
                // abort the update task:
                NAMING_LOGGER.info("update task is stopped, service:" + serviceName + ", clusters:" + clusters);
                return;
            }
			 //延后10s执行，实现重复轮询
            executor.schedule(this, serviceObj.getCacheMillis(), TimeUnit.MILLISECONDS);


        } catch (Throwable e) {
            NAMING_LOGGER.warn("[NA] failed to update serviceName: " + serviceName, e);
        }

    }
}

3.push服务端请求推送数据

在服务端处理注册请求的时候，InstanceController.registerInstance —-> ServiceManager.registerInstance

—-> ServiceManager.createEmptyService—>ServiceManager.createServiceIfAbsent—->ServiceManager.putServiceAndInit

ServiceManager.putServiceAndInit

private void putServiceAndInit(Service service) throws NacosException {
    putService(service);
    //开启一个健康检查的定时任务，用来检测各实例主键的健康状态
    service.init();
    consistencyService
        .listen(KeyBuilder.buildInstanceListKey(service.getNamespaceId(), service.getName(), true), service);
    consistencyService
        .listen(KeyBuilder.buildInstanceListKey(service.getNamespaceId(), service.getName(), false), service);
    Loggers.SRV_LOG.info("[NEW-SERVICE] {}", service.toJson());
}

Service.init

这个init方法，会和当前服务提供者建立一个心跳检测机制，这个心跳检测会每5s执行一次

private ClientBeatCheckTask clientBeatCheckTask = new ClientBeatCheckTask(this);

public void init() {
    //健康检测的定时任务,
    HealthCheckReactor.scheduleCheck(clientBeatCheckTask);
    for (Map.Entry<String, Cluster> entry : clusterMap.entrySet()) {
        entry.getValue().setService(this);
        entry.getValue().init();
    }
}

HealthCheckReactor.scheduleCheck

第一次启动之后5s执行,之后每次延时5s执行

public static void scheduleCheck(ClientBeatCheckTask task) {
    futureMap.putIfAbsent(task.taskKey(), GlobalExecutor.scheduleNamingHealth(task, 5000, 5000, TimeUnit.MILLISECONDS));
}

ClientBeatCheckTask.run

public class ClientBeatCheckTask implements Runnable {

    private Service service;

    public ClientBeatCheckTask(Service service) {
        this.service = service;
    }

    @JsonIgnore
    public PushService getPushService() {
        return ApplicationUtils.getBean(PushService.class);
    }

    @JsonIgnore
    public DistroMapper getDistroMapper() {
        return ApplicationUtils.getBean(DistroMapper.class);
    }

    public GlobalConfig getGlobalConfig() {
        return ApplicationUtils.getBean(GlobalConfig.class);
    }

    public SwitchDomain getSwitchDomain() {
        return ApplicationUtils.getBean(SwitchDomain.class);
    }

    public String taskKey() {
        return KeyBuilder.buildServiceMetaKey(service.getNamespaceId(), service.getName());
    }

    @Override
    public void run() {
        try {
            if (!getDistroMapper().responsible(service.getName())) {
                return;
            }

            if (!getSwitchDomain().isHealthCheckEnabled()) {
                return;
            }

            List<Instance> instances = service.allIPs(true);

            // first set health status of instances:
            //遍历服务节点进行心跳检测
            for (Instance instance : instances) {
                 //如果服务实例的最后一次心跳时间大于设置的超时时间，则认为这个服务已经下线。
                if (System.currentTimeMillis() - instance.getLastBeat() > instance.getInstanceHeartBeatTimeOut()) {
                    if (!instance.isMarked()) {
                        if (instance.isHealthy()) {
                            //设置实例为非健康状态
                            instance.setHealthy(false);
                            Loggers.EVT_LOG
                                .info("{POS} {IP-DISABLED} valid: {}:{}@{}@{}, region: {}, msg: client timeout after {}, last beat: {}",
                                      instance.getIp(), instance.getPort(), instance.getClusterName(),
                                      service.getName(), UtilsAndCommons.LOCALHOST_SITE,
                                      instance.getInstanceHeartBeatTimeOut(), instance.getLastBeat());
                            //发起一个实例变更的推送，推送服务变更事件。
                            getPushService().serviceChanged(service);
                            ApplicationUtils.publishEvent(new InstanceHeartbeatTimeoutEvent(this, instance));
                        }
                    }
                }
            }

            if (!getGlobalConfig().isExpireInstance()) {
                return;
            }

            // then remove obsolete instances:
            for (Instance instance : instances) {

                if (instance.isMarked()) {
                    continue;
                }

                if (System.currentTimeMillis() - instance.getLastBeat() > instance.getIpDeleteTimeout()) {
                    // delete instance
                    Loggers.SRV_LOG.info("[AUTO-DELETE-IP] service: {}, ip: {}", service.getName(),
                                         JacksonUtils.toJson(instance));
                    //删除过期的服务实
                    deleteIp(instance);
                }
            }

        } catch (Exception e) {
            Loggers.SRV_LOG.warn("Exception while processing client beat time out.", e);
        }

    }

    private void deleteIp(Instance instance) {

        try {
            NamingProxy.Request request = NamingProxy.Request.newRequest();
            request.appendParam("ip", instance.getIp()).appendParam("port", String.valueOf(instance.getPort()))
                .appendParam("ephemeral", "true").appendParam("clusterName", instance.getClusterName())
                .appendParam("serviceName", service.getName()).appendParam("namespaceId", service.getNamespaceId());

            String url = "http://127.0.0.1:" + ApplicationUtils.getPort() + ApplicationUtils.getContextPath()
                + UtilsAndCommons.NACOS_NAMING_CONTEXT + "/instance?" + request.toUrl();

            // delete instance asynchronously:
            HttpClient.asyncHttpDelete(url, null, null, new AsyncCompletionHandler() {
                @Override
                public Object onCompleted(Response response) throws Exception {
                    if (response.getStatusCode() != HttpURLConnection.HTTP_OK) {
                        Loggers.SRV_LOG
                            .error("[IP-DEAD] failed to delete ip automatically, ip: {}, caused {}, resp code: {}",
                                   instance.toJson(), response.getResponseBody(), response.getStatusCode());
                    }
                    return null;
                }
            });

        } catch (Exception e) {
            Loggers.SRV_LOG
                .error("[IP-DEAD] failed to delete ip automatically, ip: {}, error: {}", instance.toJson(), e);
        }
    }
}

PushService.serviceChanged

public void serviceChanged(Service service) {
    // merge some change events to reduce the push frequency:
    if (futureMap
        .containsKey(UtilsAndCommons.assembleFullServiceName(service.getNamespaceId(), service.getName()))) {
        return;
    }
	//发布一个事件变更的通知
    this.applicationContext.publishEvent(new ServiceChangeEvent(this, service));
}

PushService.onApplicationEvent(开启一个事件监听)

public class PushService implements ApplicationContextAware, ApplicationListener<ServiceChangeEvent> {
    @Override
    public void onApplicationEvent(ServiceChangeEvent event) {
        Service service = event.getService();
        String serviceName = service.getName();
        String namespaceId = service.getNamespaceId();

        Future future = GlobalExecutor.scheduleUdpSender(() -> {
            try {
                Loggers.PUSH.info(serviceName + " is changed, add it to push queue.");
                ConcurrentMap<String, PushClient> clients = clientMap
                    .get(UtilsAndCommons.assembleFullServiceName(namespaceId, serviceName));
                if (MapUtils.isEmpty(clients)) {
                    return;
                }

                Map<String, Object> cache = new HashMap<>(16);
                long lastRefTime = System.nanoTime();
                for (PushClient client : clients.values()) {
                    if (client.zombie()) {
                        Loggers.PUSH.debug("client is zombie: " + client.toString());
                        clients.remove(client.toString());
                        Loggers.PUSH.debug("client is zombie: " + client.toString());
                        continue;
                    }

                    Receiver.AckEntry ackEntry;
                    Loggers.PUSH.debug("push serviceName: {} to client: {}", serviceName, client.toString());
                    String key = getPushCacheKey(serviceName, client.getIp(), client.getAgent());
                    byte[] compressData = null;
                    Map<String, Object> data = null;
                    if (switchDomain.getDefaultPushCacheMillis() >= 20000 && cache.containsKey(key)) {
                        org.javatuples.Pair pair = (org.javatuples.Pair) cache.get(key);
                        compressData = (byte[]) (pair.getValue0());
                        data = (Map<String, Object>) pair.getValue1();

                        Loggers.PUSH.debug("[PUSH-CACHE] cache hit: {}:{}", serviceName, client.getAddrStr());
                    }

                    if (compressData != null) {
                        ackEntry = prepareAckEntry(client, compressData, data, lastRefTime);
                    } else {
                        ackEntry = prepareAckEntry(client, prepareHostsData(client), lastRefTime);
                        if (ackEntry != null) {
                            cache.put(key, new org.javatuples.Pair<>(ackEntry.origin.getData(), ackEntry.data));
                        }
                    }

                    Loggers.PUSH.info("serviceName: {} changed, schedule push for: {}, agent: {}, key: {}",
                                      client.getServiceName(), client.getAddrStr(), client.getAgent(),
                                      (ackEntry == null ? null : ackEntry.key));
					//推送数据包
                    udpPush(ackEntry);
                }
            } catch (Exception e) {
                Loggers.PUSH.error("[NACOS-PUSH] failed to push serviceName: {} to client, error: {}", serviceName, e);

            } finally {
                futureMap.remove(UtilsAndCommons.assembleFullServiceName(namespaceId, serviceName));
            }

        }, 1000, TimeUnit.MILLISECONDS);

        futureMap.put(UtilsAndCommons.assembleFullServiceName(namespaceId, serviceName), future);

    }
}

PushService.udpPush

private static Receiver.AckEntry udpPush(Receiver.AckEntry ackEntry) {
    if (ackEntry == null) {
        Loggers.PUSH.error("[NACOS-PUSH] ackEntry is null.");
        return null;
    }

    if (ackEntry.getRetryTimes() > MAX_RETRY_TIMES) {
        Loggers.PUSH.warn("max re-push times reached, retry times {}, key: {}", ackEntry.retryTimes, ackEntry.key);
        ackMap.remove(ackEntry.key);
        udpSendTimeMap.remove(ackEntry.key);
        failedPush += 1;
        return ackEntry;
    }

    try {
        if (!ackMap.containsKey(ackEntry.key)) {
            totalPush++;
        }
        ackMap.put(ackEntry.key, ackEntry);
        udpSendTimeMap.put(ackEntry.key, System.currentTimeMillis());

        Loggers.PUSH.info("send udp packet: " + ackEntry.key);
        //基于UDPSocket发起请求推送Push
        udpSocket.send(ackEntry.origin);

        ackEntry.increaseRetryTime();

        GlobalExecutor.scheduleRetransmitter(new Retransmitter(ackEntry),
                TimeUnit.NANOSECONDS.toMillis(ACK_TIMEOUT_NANOS), TimeUnit.MILLISECONDS);

        return ackEntry;
    } catch (Exception e) {
        Loggers.PUSH.error("[NACOS-PUSH] failed to push data: {} to client: {}, error: {}", ackEntry.data,
                ackEntry.origin.getAddress().getHostAddress(), e);
        ackMap.remove(ackEntry.key);
        udpSendTimeMap.remove(ackEntry.key);
        failedPush += 1;

        return null;
    }
}

客户端监听此推送

PushReceiver.run

@Override
public void run() {
    while (true) {
        try {
            // byte[] is initialized with 0 full filled by default
            byte[] buffer = new byte[UDP_MSS];
            DatagramPacket packet = new DatagramPacket(buffer, buffer.length);

            udpSocket.receive(packet);

            String json = new String(IoUtils.tryDecompress(packet.getData()), "UTF-8").trim();
            NAMING_LOGGER.info("received push data: " + json + " from " + packet.getAddress().toString());

            PushPacket pushPacket = JSON.parseObject(json, PushPacket.class);
            String ack;
            if ("dom".equals(pushPacket.type) || "service".equals(pushPacket.type)) {
                //解析并更新本地缓存
                hostReactor.processServiceJSON(pushPacket.data);

                // send ack to server
                ack = "{\"type\": \"push-ack\""
                    + ", \"lastRefTime\":\"" + pushPacket.lastRefTime
                    + "\", \"data\":" + "\"\"}";
            } else if ("dump".equals(pushPacket.type)) {
                // dump data to server
                ack = "{\"type\": \"dump-ack\""
                    + ", \"lastRefTime\": \"" + pushPacket.lastRefTime
                    + "\", \"data\":" + "\""
                    + StringUtils.escapeJavaScript(JSON.toJSONString(hostReactor.getServiceInfoMap()))
                    + "\"}";
            } else {
                // do nothing send ack only
                ack = "{\"type\": \"unknown-ack\""
                    + ", \"lastRefTime\":\"" + pushPacket.lastRefTime
                    + "\", \"data\":" + "\"\"}";
            }

            udpSocket.send(new DatagramPacket(ack.getBytes(Charset.forName("UTF-8")),
                                              ack.getBytes(Charset.forName("UTF-8")).length, packet.getSocketAddress()));
        } catch (Exception e) {
            NAMING_LOGGER.error("[NA] error while receiving push data", e);
        }
    }
}

HostReactor.processServiceJSON

public ServiceInfo processServiceJSON(String json) {
    ServiceInfo serviceInfo = JSON.parseObject(json, ServiceInfo.class);
    ServiceInfo oldService = serviceInfoMap.get(serviceInfo.getKey());
    if (serviceInfo.getHosts() == null || !serviceInfo.validate()) {
        //empty or error push, just ignore
        return oldService;
    }

    boolean changed = false;

    if (oldService != null) {

        if (oldService.getLastRefTime() > serviceInfo.getLastRefTime()) {
            NAMING_LOGGER.warn("out of date data received, old-t: " + oldService.getLastRefTime()
                               + ", new-t: " + serviceInfo.getLastRefTime());
        }

        serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);

        Map<String, Instance> oldHostMap = new HashMap<String, Instance>(oldService.getHosts().size());
        for (Instance host : oldService.getHosts()) {
            oldHostMap.put(host.toInetAddr(), host);
        }

        Map<String, Instance> newHostMap = new HashMap<String, Instance>(serviceInfo.getHosts().size());
        for (Instance host : serviceInfo.getHosts()) {
            newHostMap.put(host.toInetAddr(), host);
        }

        Set<Instance> modHosts = new HashSet<Instance>();
        Set<Instance> newHosts = new HashSet<Instance>();
        Set<Instance> remvHosts = new HashSet<Instance>();

        List<Map.Entry<String, Instance>> newServiceHosts = new ArrayList<Map.Entry<String, Instance>>(
            newHostMap.entrySet());
        for (Map.Entry<String, Instance> entry : newServiceHosts) {
            Instance host = entry.getValue();
            String key = entry.getKey();
            if (oldHostMap.containsKey(key) && !StringUtils.equals(host.toString(),
                                                                   oldHostMap.get(key).toString())) {
                modHosts.add(host);
                continue;
            }

            if (!oldHostMap.containsKey(key)) {
                newHosts.add(host);
            }
        }

        for (Map.Entry<String, Instance> entry : oldHostMap.entrySet()) {
            Instance host = entry.getValue();
            String key = entry.getKey();
            if (newHostMap.containsKey(key)) {
                continue;
            }

            if (!newHostMap.containsKey(key)) {
                remvHosts.add(host);
            }

        }

        if (newHosts.size() > 0) {
            changed = true;
            NAMING_LOGGER.info("new ips(" + newHosts.size() + ") service: "
                               + serviceInfo.getKey() + " -> " + JSON.toJSONString(newHosts));
        }

        if (remvHosts.size() > 0) {
            changed = true;
            NAMING_LOGGER.info("removed ips(" + remvHosts.size() + ") service: "
                               + serviceInfo.getKey() + " -> " + JSON.toJSONString(remvHosts));
        }

        if (modHosts.size() > 0) {
            changed = true;
            NAMING_LOGGER.info("modified ips(" + modHosts.size() + ") service: "
                               + serviceInfo.getKey() + " -> " + JSON.toJSONString(modHosts));
        }

        serviceInfo.setJsonFromServer(json);

        if (newHosts.size() > 0 || remvHosts.size() > 0 || modHosts.size() > 0) {
            eventDispatcher.serviceChanged(serviceInfo);
            DiskCache.write(serviceInfo, cacheDir);
        }

    } else {
        changed = true;
        NAMING_LOGGER.info("init new ips(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() + " -> " + JSON
                           .toJSONString(serviceInfo.getHosts()));
        serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);
        eventDispatcher.serviceChanged(serviceInfo);
        serviceInfo.setJsonFromServer(json);
        DiskCache.write(serviceInfo, cacheDir);
    }

    MetricsMonitor.getServiceInfoMapSizeMonitor().set(serviceInfoMap.size());

    if (changed) {
        NAMING_LOGGER.info("current ips:(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() +
                           " -> " + JSON.toJSONString(serviceInfo.getHosts()));
    }

    return serviceInfo;
}

原文链接：https://blog.csdn.net/xingxinggua9620/article/details/113403062

2.Nacos 服务注册的原理

Nacos服务注册需要具备的能力

Nacos API

服务注册

请求参数

请求示例

服务查询

请求参数

请求示例

心跳机制

Nacos的实现原理图

Nacos的源码分析

Nacos客户端注册的流程

DubboServiceRegistrationNonWebApplicationAutoConfiguration

NacosServiceRegistry.register

NacosNamingService.registerInstance

NamingProxy.registerService

NamingProxy.reqAPI

NamingProxy.callServer

HttpClient.request

Nacos服务端的注册流程

InstanceController.register

ServiceManager.registerInstance

ServiceManager.createServiceIfAbsent

ServiceManager.getService

ServiceManager.putServiceAndInit

ServiceManager.putService

ServiceManager.addInstance

消费者的服务查询

1.客户端启动获取服务列表(从Nacos Server中读取指定服务名称的实例列表,缓存到本地内存中)

NacosDiscoveryClient.getInstances

NacosNamingService.selectInstances

HostReactor.getServiceInfo

HostReactor.getServiceInfo0

HostReactor.updateServiceNow

HostReactor.processServiceJSON

NamingProxy.queryList

服务端处理查询列表请求

InstanceController.list

InstanceController.doSrvIpxt

服务的订阅，实现服务的动态更新

2.开启一个定时任务,每隔10s去轮询一次服务列表

NacosNamingService.init

HostReactor构造方法

PushReceiver构造方法

HostReactor.updateServiceNow

NacosNamingService.getServiceInfo

HostReactor.scheduleUpdateIfAbsent

UpdateTask

3.push服务端请求推送数据

ServiceManager.putServiceAndInit

Service.init

HealthCheckReactor.scheduleCheck

ClientBeatCheckTask.run

PushService.serviceChanged

PushService.onApplicationEvent(开启一个事件监听)

PushService.udpPush

客户端监听此推送

PushReceiver.run

HostReactor.processServiceJSON

相关文章
