附代码 DeeplabV1:SEMANTIC IMAGE SEGMENTATION WITH DEEP CONVOLUTIONAL NETS AND FULLY CONNECTED CRFS

SEMANTIC IMAGE SEGMENTATION WITH DEEP CONVOLUTIONAL NETS AND FULLY CONNECTED CRFS论文解读

V2链接：

https://blog.csdn.net/weixin_44543648/article/details/122599976


V3链接：

https://blog.csdn.net/weixin_44543648/article/details/122829741


论文地址：

https://arxiv.org/pdf/1412.7062v3.pdf


代码地址：

https://github.com/wangleihitcs/DeepLab-V1-PyTorch

主要内容：

主要解决DCNN用于图像分割中存在的两个问题：

下采样

：最大池和下采样重复组合会导致的信号分辨率降低


空间上的“不敏感性”（不变性）

：分类器获得以对象为中心的决策需要对空间转换的不变性，这固有地限制了DCNN模型的空间准确性。

主要采用两个方法来解决这一问题：

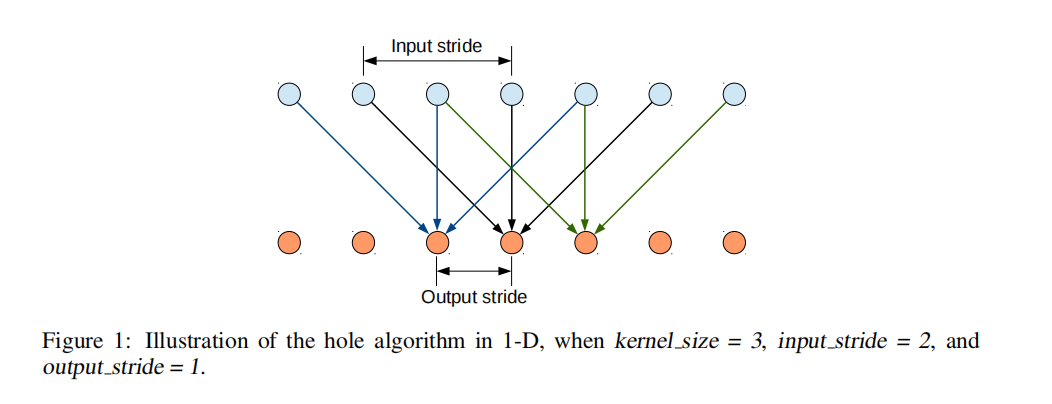

• 采用hole算法解决下采样的问题，提高接收域：即设置conv2d中的dilation，如图所示：


• 使用全连接条件随机场(CRF)，提高了模型捕获细节的能力。一般用于test阶段，不用于train阶段。

  公式：



代码：

CRF代码：

import numpy as np
import pydensecrf.densecrf as dcrf
import pydensecrf.utils as utils


class DenseCRF(object):
    def __init__(self, iter_max, pos_w, pos_xy_std, bi_w, bi_xy_std, bi_rgb_std):
        self.iter_max = iter_max
        self.pos_w = pos_w
        self.pos_xy_std = pos_xy_std
        self.bi_w = bi_w
        self.bi_xy_std = bi_xy_std
        self.bi_rgb_std = bi_rgb_std

    def __call__(self, image, probmap):
        C, H, W = probmap.shape

        U = utils.unary_from_softmax(probmap)
        U = np.ascontiguousarray(U)

        image = np.ascontiguousarray(image)#内存不连续的图像转换为内存连续的图像

        d = dcrf.DenseCRF2D(W, H, C)
        d.setUnaryEnergy(U)
        d.addPairwiseGaussian(sxy=self.pos_xy_std, compat=self.pos_w)
        d.addPairwiseBilateral(
            sxy=self.bi_xy_std, srgb=self.bi_rgb_std, rgbim=image, compat=self.bi_w
        )

        Q = d.inference(self.iter_max)
        Q = np.array(Q).reshape((C, H, W))

        return Q

网络代码：

import torch
import torch.nn as nn
from torchvision import models

class VGG16_LargeFOV(nn.Module):
    def __init__(self, num_classes=21, input_size=321, split='train', init_weights=True):
        super(VGG16_LargeFOV, self).__init__()
        self.input_size = input_size
        self.split = split
        self.features = nn.Sequential(
            ### conv1_1 conv1_2 maxpooling
            nn.Conv2d(3, 64, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.Conv2d(64, 64, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.MaxPool2d(kernel_size=3, stride=2, padding=1),

            ### conv2_1 conv2_2 maxpooling
            nn.Conv2d(64, 128, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.Conv2d(128, 128, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.MaxPool2d(kernel_size=3, stride=2, padding=1),

            ### conv3_1 conv3_2 conv3_3 maxpooling
            nn.Conv2d(128, 256, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.Conv2d(256, 256, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.Conv2d(256, 256, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.MaxPool2d(kernel_size=3, stride=2, padding=1),


            ### conv4_1 conv4_2 conv4_3 maxpooling(stride=1)
            nn.Conv2d(256, 512, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1),
            nn.ReLU(True),
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),

            ### conv5_1 conv5_2 conv5_3 (dilated convolution dilation=2, padding=2)
            ### maxpooling(stride=1)
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=2, dilation=2),
            nn.ReLU(True),
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=2, dilation=2),
            nn.ReLU(True),
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=2, dilation=2),
            nn.ReLU(True),
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
            ### average pooling
            nn.AvgPool2d(kernel_size=3, stride=1, padding=1),

            ### fc6 relu6 drop6
            nn.Conv2d(512, 1024, kernel_size=3, stride=1, padding=12, dilation=12),
            nn.ReLU(True),
            nn.Dropout2d(0.5),

            ### fc7 relu7 drop7 (kernel_size=1, padding=0)
            nn.Conv2d(1024, 1024, kernel_size=1, stride=1, padding=0),
            nn.ReLU(True),
            nn.Dropout2d(0.5),

            ### fc8
            nn.Conv2d(1024, num_classes, kernel_size=1, stride=1, padding=0)
        )

        if init_weights:
            self._initialize_weights()

    def forward(self, x):
        output = self.features(x)
        if self.split == 'test':
            output = nn.functional.interpolate(output, size=(self.input_size, self.input_size), mode='bilinear', align_corners=True)
        return output

    def _initialize_weights(self):
        for m in self.named_modules():
            if isinstance(m[1], nn.Conv2d):
                if m[0] == 'features.38':
                    nn.init.normal_(m[1].weight.data, mean=0, std=0.01)
                    nn.init.constant_(m[1].bias.data, 0.0)


if __name__ == "__main__":
    model = VGG16_LargeFOV()
    x = torch.ones([2, 3, 321, 321])
    y = model(x)
    print(y.shape)
